Product code: BE850G2-GR
BE850G2-GR | APC Back-UPS 850VA, 230V
Call for Price
APC Back-UPS 850VA, 230V, USB Type-C and A charging ports, 8 Schuko CEE 7 outlets (2 surge)
Model: BE850G2-GRDownload Product Datasheet
Overview
Specicifications
No Reviews
Overview
| Overview | |
| Lead time | Usually in Stock |
| Main | |
| Main input voltage | 230 V |
| Other Input Voltage | 220 V |
| Main output voltage | 230 V |
| Other output Voltage | 220 V |
| Rated power in W | 520 W |
| Rated power in VA | 850 VA |
| Input connection type | Schuko CEE 7/7P |
| Output connection type | 6 Schuko CEE 7 2 Schuko CEE 7 surge |
| Cable length | 1.83 m |
| Battery type | Lead-acid battery |
| Provided equipment | User manual |
| General | |
| Number of power module free slots | 0 |
| Number of power module filled slots | 0 |
| Redundant | No |
| Physical | |
| Colour | Black |
| Height | 12 cm |
| Width | 13 cm |
| Depth | 36.5 cm |
| Net weight | 4.5 kg |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | Yes |
| Input | |
| Network frequency | 47…63 Hz |
| Maximum input current | 6 A |
| Switching current capacity | 10 A |
| Output | |
| Maximum Configurable Power in W | 520 W |
| Output frequency | 47…63 Hz sync to mains |
| UPS type | Standby |
| Wave type | Stepped approximation to a sinewave |
| Efficiency | 80 % (full load) |
| Graph start point | 55 |
| Maximum configurable power in VA | 850 VA |
| Transfer time | 6 ms typical : 10 ms maximum |
| Conformance | |
| Product certifications | CE EAC |
| Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Equipment protection policy | Lifetime : 100000 euros |
| Environmental | |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…90% |
| Operating altitude | 0…3000 m |
| Ambient air temperature for storage | -15…45 °C |
| Storage Relative Humidity | 0…95% |
| Storage altitude | 0.00…4572.00 m |
| Acoustic level | 45 dBA |
| Batteries & Runtime | |
| Run Time | View Runtime Graph |
| Efficiency | View Efficiency Graph |
| Number of batteries filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 16 h |
| Battery voltage | 12 V |
| Battery capacity | 9.0 Ah |
| Battery charger power | 6 W rated |
| Battery power in VAH | 93 VAh runtime |
| Battery life | 2…5 year(s) |
| Replacement battery | RBC17 |
| Battery option | RBC17 1 |
| Extended runtime | 0 |
| Communications & Management | |
| Control panel | LED status display with on line : on battery : replace battery and overload indicators |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Surge Protection and Filtering | |
| Surge energy rate | 310 J |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 19 cm |
| Package 1 width | 44.1 cm |
| Package 1 Length | 18.6 cm |
| Package 1 Weight | 5 kg |
| SCC14 | 10731304347283 |
| Contractual warranty | |
| Warranty | 2 years repair or replace, 3 years repair or replace for European Union countries |
Specicifications
No Reviews
Similar items
BVS1000I-GR | SE EASY UPS BVS 1000VA
6,250 EGPProduct successfully added to the Quote List
BV650I-GR | APC EASY UPS BV 650 VA
4,020 EGPProduct successfully added to the Quote List

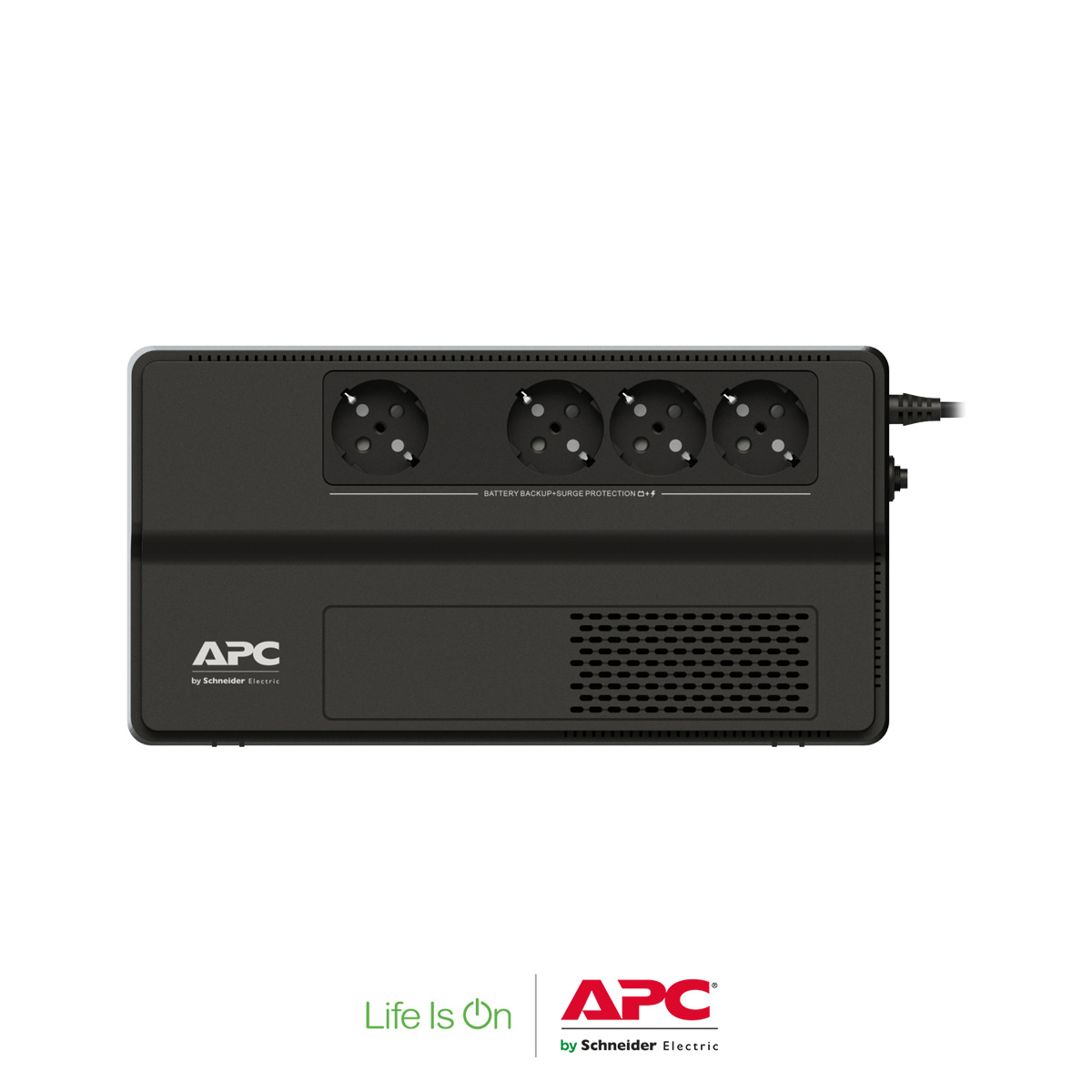

BV500I-GR | APC EASY UPS BV 500 VA
