Product code: SRV10KI
SRV10KI | APC Easy UPS Online SRV 10000VA 230V
Original price was: 130,680 EGP.124,300 EGPCurrent price is: 124,300 EGP.
APC SRV10KI
[dt_divider style="thin" /]APC Easy UPS On-Line, 10kVA/10kW, Tower, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD
Product successfully added to the Quote List
Overview
Specicifications
No Reviews
Overview
APC SRV10KI 10kVA/10kW double-conversion on-line pure sine wave Tower Easy UPS High quality, designed for essential power protection needs even in the most unstable power conditions. APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA double-conversion on-line tower UPS provides pure sine wave power to support critical electronics during power disruptions.
[dt_divider style=”thin” /]
Overview
| Main | |
| Main input voltage | 230 V |
| Other input voltage | 220 V 240 V |
| Main output voltage | 230 V |
| Other output voltage | 220 V 240 V |
| Rated power in W | 10000 W |
| Rated power in VA | 10000 VA |
| Output connector type | Hard wire 3-wire (H N + E) 1 |
| Provided equipment | Basic UPS signalling RS-232 cable CD with software User manual USB cable |
| General | |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Physical | |
| Color | Black |
| Height | 68.5 cm |
| Width | 19 cm |
| Depth | 44.7 cm |
| Net weight | 65 kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| USB compatible | Yes |
| Mounting position | Vertical |
| Input | |
| Input voltage limits | 110…300 V half load 176…300 V full load |
| Number of input connectors | 1 hard wire 3-wire (1P + N + E) |
| Network frequency | 40…70 Hz auto sensing |
| Output | |
| Maximum Configurable Power in VA | 10000 VC |
| Maximum configurable power in W | 10000 W |
| Output frequency | 50/60 Hz +/- 1 Hz sync to mains |
| Harmonic distortion | 1 % |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| Efficiency | 94 % (full load) |
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
| Bypass type | Internal bypass (automatic and manual) |
| Crest factor | 3 : 1 |
| Conformance | |
| product certifications | CE EAC TISI |
| Standards | EN/IEC 62040-1 EN/IEC 62040-2 |
| Environmental | |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0…3000 m |
| Ambient air temperature for storage | -15…60 °C |
| Storage Relative Humidity | non-condensing  0…95 % |
| Storage altitude | 0…15000 m |
| Acoustic level | 58 dBA |
| Heat dissipation | 2128 Btu/h |
| IP degree of protection | IP20 |
| Batteries & Runtime | |
| Run Time | View Runtime Graph |
| Efficiency | View Efficiency Graph |
| Battery type | Lead-acid battery |
| Battery voltage | 192 V |
| Number of batteries filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 9 h |
| Battery life | 3…5 year(s) |
| Battery charger power | 235 W rated |
| Communications & Management | |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Control panel | Multifunction LCD status and control console |
| Emergency power off | Yes |
| free slots | 1 |
| Surge Protection and Filtering | |
| Surge energy rate | 600 J |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 77 kg |
| Package 1 Height | 91 cm |
| Package 1 width | 32 cm |
| Package 1 Length | 58 cm |
| Contractual warranty | |
| Warranty | 2 years repair or replace |
Specicifications
No Reviews
Similar items
SRV1KI | APC Easy UPS Online SRV 1000VA 230V
24,960 EGPProduct successfully added to the Quote List
Sale!
BVX1600LI-GR | APC Easy UPS BVX 1600VA, 230V
Original price was: 10,890 EGP.9,680 EGPCurrent price is: 9,680 EGP.Product successfully added to the Quote List
SRVS10KI | SE Easy UPS Online SRVS 10000VA 230V
Call for PriceProduct successfully added to the Quote List
SRVS2KI | SE Easy UPS Online SRVS 2000VA 230V
Call for PriceProduct successfully added to the Quote List
SRVS3KI | SE Easy UPS Online SRVS 3000VA 230V
48,000 EGPProduct successfully added to the Quote List

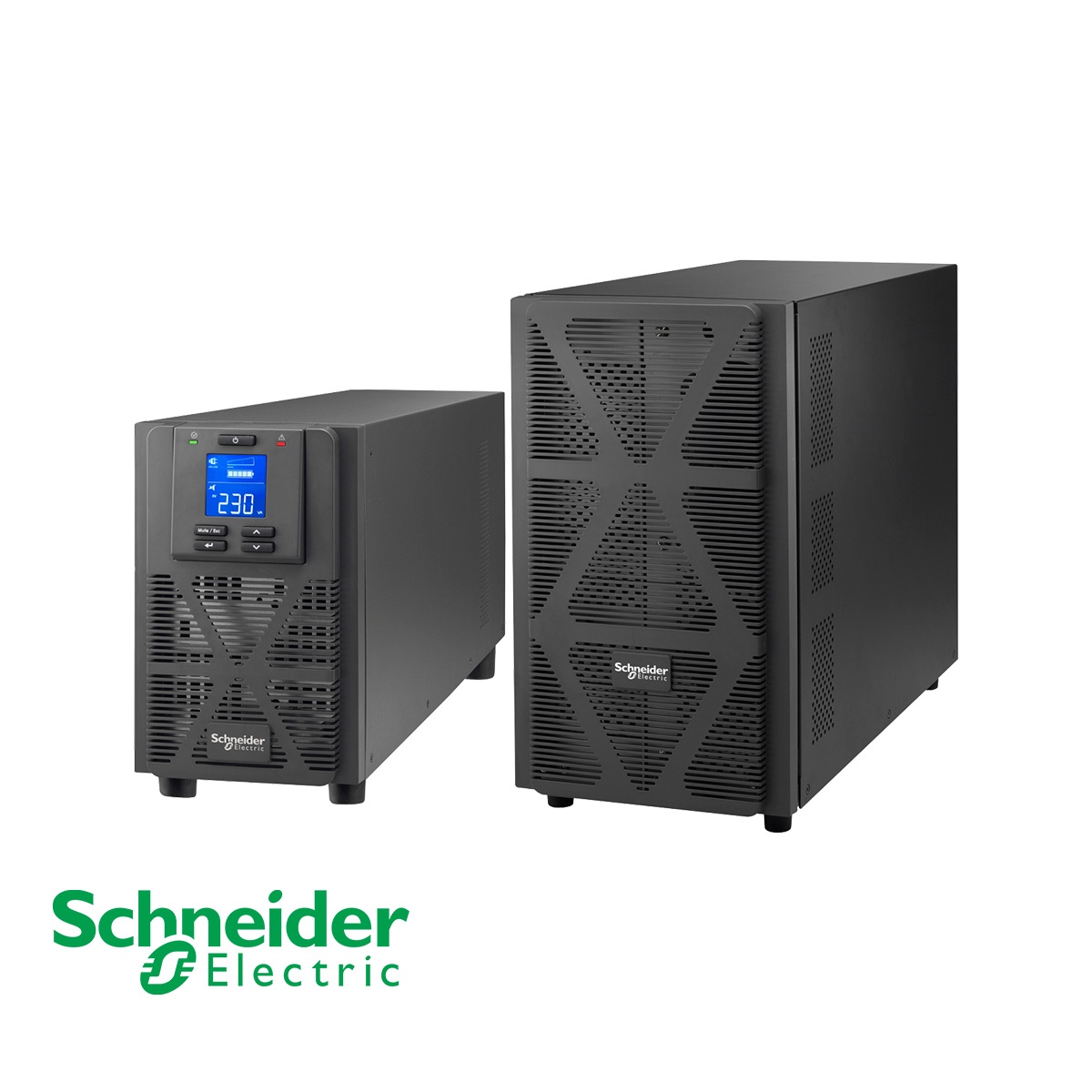

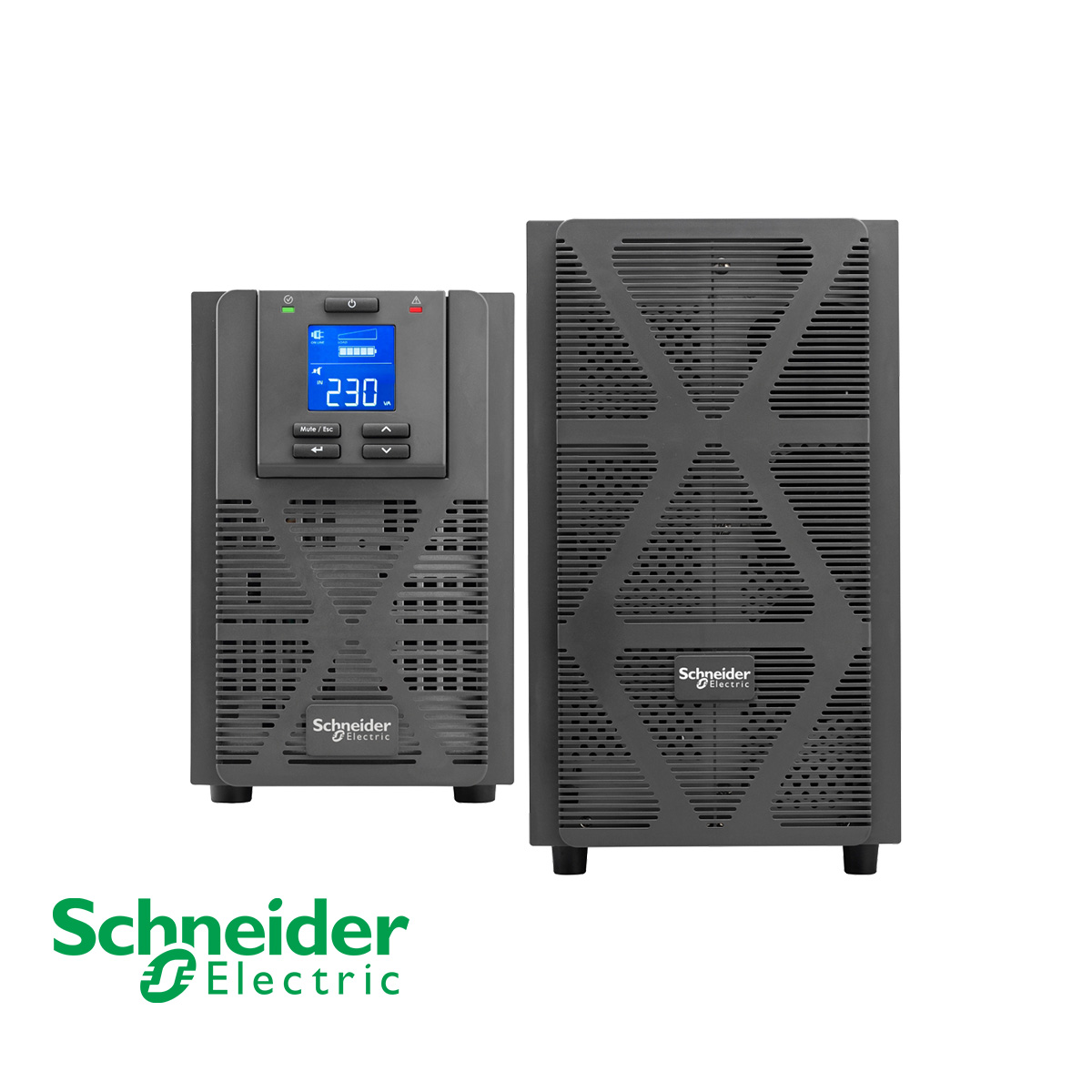

SRVS3KIL | SE Easy UPS Online SRVS 3000VA 230V
