Product code: SRV3KRIRK
SRV3KRIRK | APC Easy UPS Online SRV 3000VA RM 230V
63,360 EGP
APC SRV3KRIRK
[dt_divider style="thin" /]

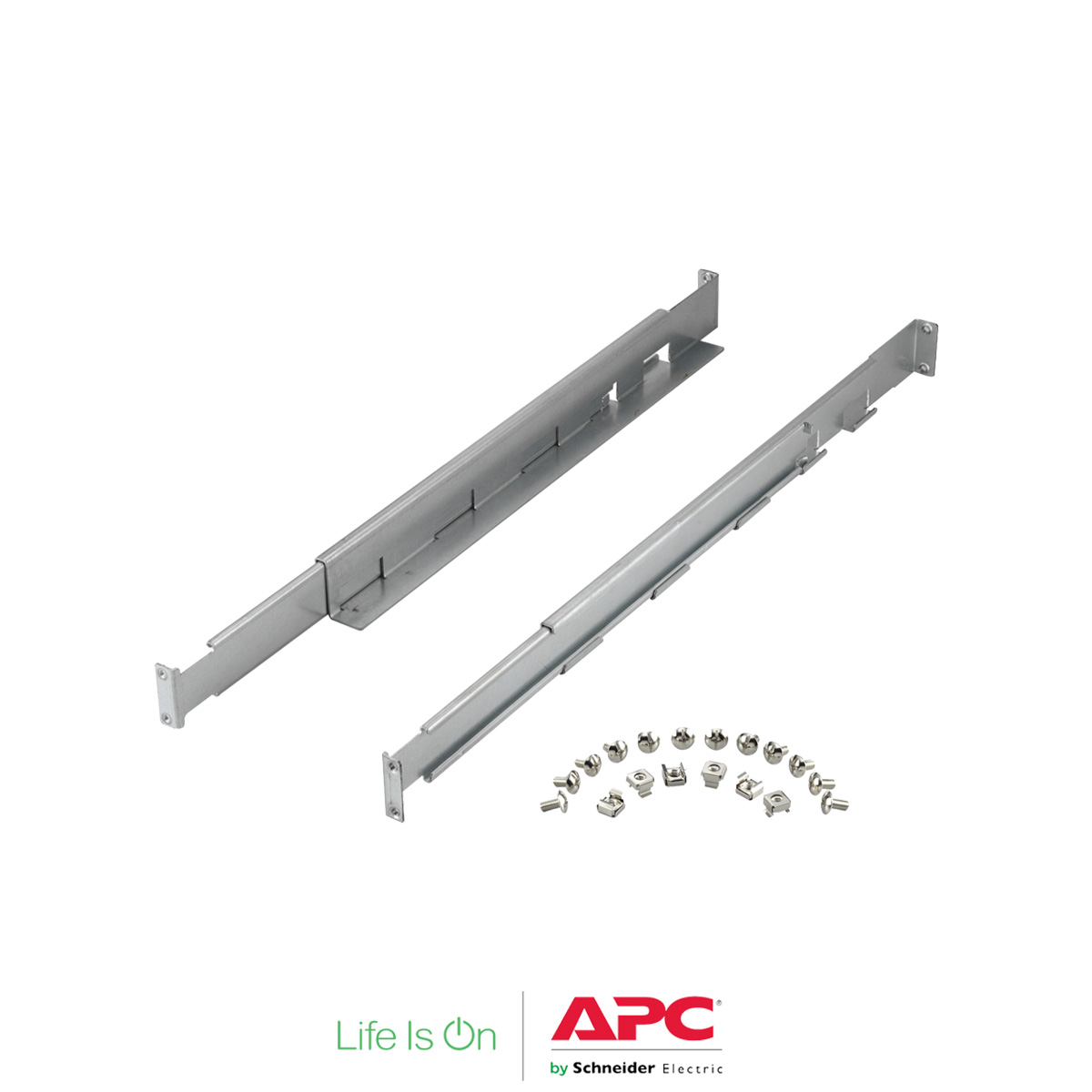

APC Easy UPS On-Line, 3kVA/2400W, Rackmount 2U, 230V, 6x IEC C13 + 1x IEC C19 outlets, Intelligent Card Slot, LCD, W/ rail kit
Product successfully added to the Quote List
Overview
Specicifications
No Reviews
Overview
APC SRV3KRIRK 3kVA/2400W double-conversion on-line pure sine wave Rackmount Easy UPS High quality, designed for essential power protection needs even in the most unstable power conditions. This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA double-conversion on-line 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions.
[dt_divider style=”thin” /]
Overview
| Main | |
| Main input voltage | 230 V |
| Other input voltage | 220 V 240 V |
| Main output voltage | 230 V |
| Other output voltage | 220 V 240 V |
| Rated power in W | 2400 W |
| Rated power in VA | 3000 VA |
| Plug standard | IEC 60320 C20 |
| Number of rack unit | 2U |
| Cable length | 1.48 m |
| Number of cables | 1 |
| Provided equipment | Basic UPS signalling RS-232 cable USB cable CD with software User manual IEC-C20 – Shuko input power cord C13-C14 power cord Rack mounting brackets Rack mounting support rails |
| General | |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Physical | |
| Color | Black |
| Height | 8.6 cm |
| Width | 43.7 cm |
| Depth | 63.2 cm |
| Net weight | 27.6 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted with kit |
| USB compatible | Yes |
| Mounting position | Horizontal |
| Input | |
| Input voltage limits | 110…285 V half load 160…280 V full load |
| Network frequency | 40…70 Hz auto sensing |
| Output | |
| Maximum Configurable Power in VA | 3000 VC |
| Maximum configurable power in W | 2400 W |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Harmonic distortion | 3 % |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| Efficiency | 88 % (full load) |
| Bypass type | Internal bypass (automatic and manual) |
| Crest factor | 3 : 1 |
| Conformance | |
| Product certifications | CE EAC TISI |
| Environmental | |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0…3000 m |
| Ambient air temperature for storage | -20…50 °C |
| Storage Relative Humidity | non-condensing  0…95 % |
| Storage altitude | 0…15000 m |
| Acoustic level | 50 dBA |
| Heat dissipation | 910 Btu/h |
| IP degree of protection | IP20 |
| Batteries & Runtime | |
| Run Time | View Run Time Graph |
| Efficiency | View Efficiency Graph |
| Battery type | Lead-acid battery |
| Battery voltage | 72 V |
| Number of batteries filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 4 h |
| Battery life | 3…5 year(s) |
| Replacement battery | APCRBCV202 |
| Battery charger power | 60 W rated |
| Communications & Management | |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Control panel | Multifunction LCD status and control console |
| Free slots | 1 |
| Surge Protection and Filtering | |
| Surge energy rate | 600 J |
| Packing Units | |
| Package 1 Weight | 29 kg |
| Package 1 Height | 22.8 cm |
| Package 1 width | 57.0 cm |
| Package 1 Length | 79.4 cm |
| Contractual warranty | |
| Warranty | 2 years repair or replace |
