Product code: SRTG15KXLI

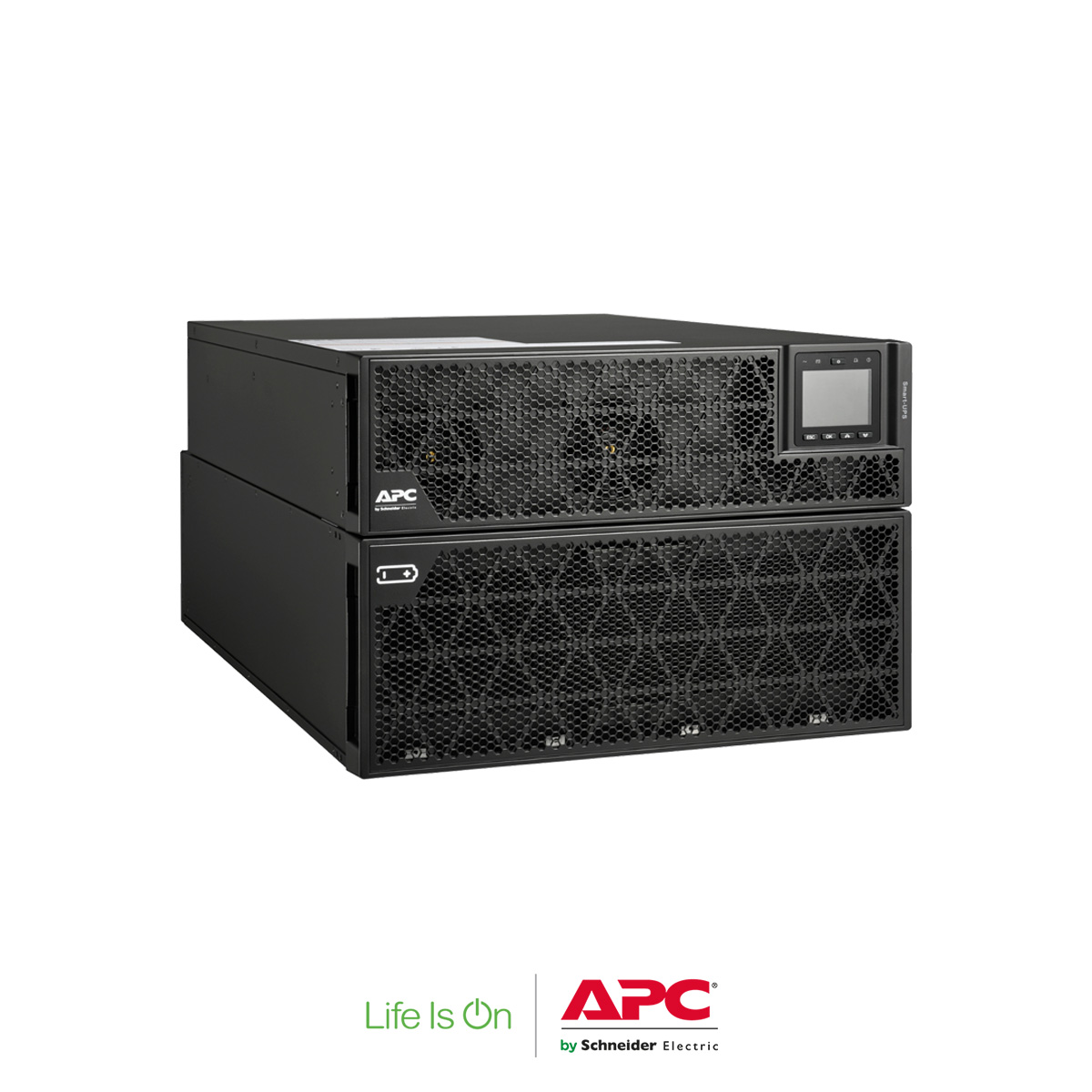

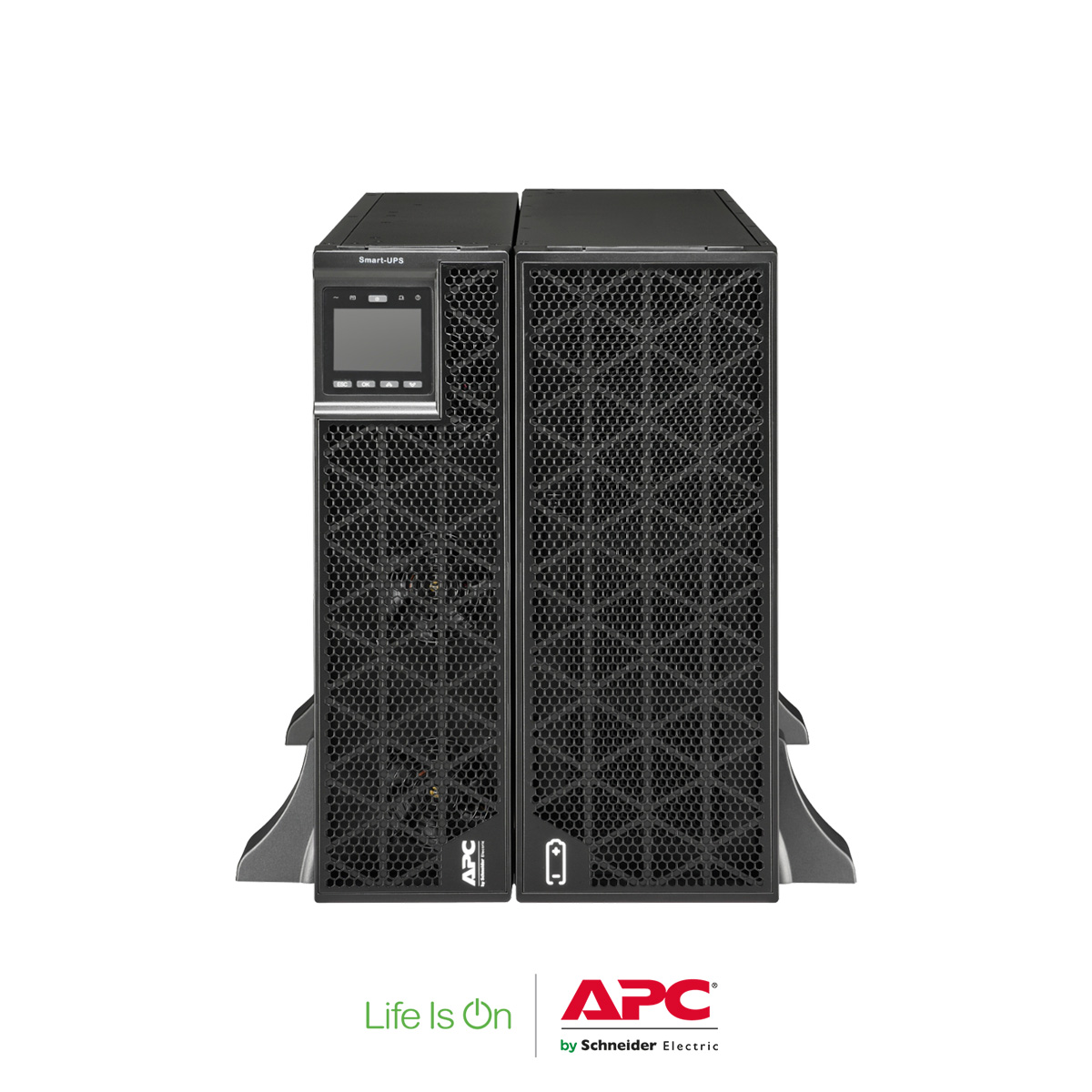

SRTG15KXLI | APC Smart UPS Online SRTG 15kVA/15kW
Call for Price
APC SRTG15KXLI
[dt_divider style="thin" /]APC Smart-UPS On-Line, 15kVA/15kW, Rack/Tower, 230V/380V...415V, Hard wire 5-wire(3P+N+E)+3-wire(1P+N+E), Network Card, W/O rail kit
Description
Characteristics
No Reviews
Description
APC SRTG15KXLI 15kVA/15kW double-conversion on-line pure sine wave rack/tower On-Line Rack/Tower Smart UPS. This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 15kVA on-line rack/tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions.
[dt_divider style=”thin” /]
Overview
| Main | |
| Main input voltage | 380…415 V 230 V |
| Other input voltage | 220…240 V |
| Main output voltage | 380…415 V 230 V |
| Other output voltage | 230 V |
| Rated power in W | 15000 W |
| Rated power in VA | 15000 VA |
| Output Connector type | Hard wire 5-wire (3P + N + E) 1 Hard wire 3-wire (1P + N + E) 1 IDC connector 3-wire (1P + N + E) 1 |
| Number of rack unit | 7U |
| Battery type | Lead-acid battery |
| Provided equipment | Smart UPS signalling RS-232 cable |
| General | |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Physical | |
| Colour | Black |
| Height | 30.6 cm |
| Width | 440 mm |
| Depth | 70.0 cm |
| Net weight | 142.5 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted |
| Two post mountable | 0 |
| USB compatible | No |
| Input | |
| Network frequency | 40…70 Hz auto-sensing |
| Number of input connectors | 1 hard wire 5 wire (3P + N + E) 1 hard wire 3-wire (1P + N + E) |
| Input voltage limits | 160…285 V 380 V |
| Maximum input current | 66 A |
| Switching current capacity | 100 A |
| Input harmonic distortion | Less than 5 % for full load |
| Input current | 66 A (1 phase) 66 A (3 phases) |
| Load power factor | From 0.9 leading to 1 lagging |
| Output | |
| Maximum configurable power in W | 15000 W |
| Harmonic distortion | Less than 5 % |
| Output frequency | 50/60 Hz +/- 1 Hz sync to mains |
| Crest factor | 3 : 1 |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| Output overload operation | 60 seconds at 125% and 30 seconds at 150% |
| Bypass type | Built-in static bypass |
| Efficiency | 93 % (in battery operation) |
| Full load runtime | 00:05:30 15000 W |
| Half load runtime | 00:14:30 7500 W |
| Maximum configurable power in VA | 15000 VA |
| Conformance | |
| Product certifications | CB |
| Environmental | |
| Ambient air temperature for operation | 0…40 °C |
| Relative Humidity | 0…95 % non-condensing |
| Operating altitude | 0…3000 ft |
| Ambient air temperature for storage | -15…45 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0…15000 m |
| Acoustic level | 58 dBA |
| Heat dissipation | 2866 Btu/h |
| IP degree of protection | IP20 |
| Batteries & Runtime | |
| Run Time | View Run Time Graph |
| Efficiency | View Efficiency Graph |
| Number of batteries filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 4 h |
| Number of battery replacement quantity | 0 |
| Additional information | Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage |
| Battery voltage | +/- 192 V |
| Battery charger power | 2160 W rated |
| Battery power in VAH | 3366 VAh capacity 3366 VAh runtime |
| Battery life | 3…5 year(s) |
| Replacement battery | APCRBC172 |
| Battery option | SRTG192XLBP2 1 6912 VAh SRTG192XLBP2 2 9953 VAh SRTG192XLBP2 3 13824 VAh SRTG192XLBP2 4 17606 VAh |
| Extended runtime | 1 |
| Communications & Management | |
| Free slots | 0 |
| Preinstalled device | Network management card |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Emergency power off | Yes |
| Surge Protection and Filtering | |
| Noise suppression | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Â | |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 535 mm |
| Package 1 width | 790 mm |
| Package 1 Length | 590 mm |
| Package 1 Weight | 157.2 kg |
| Contractual warranty | |
| Warranty | 3 years repair or replace (excluding battery) and 2 years for battery |
