Product code: SMT1000IC

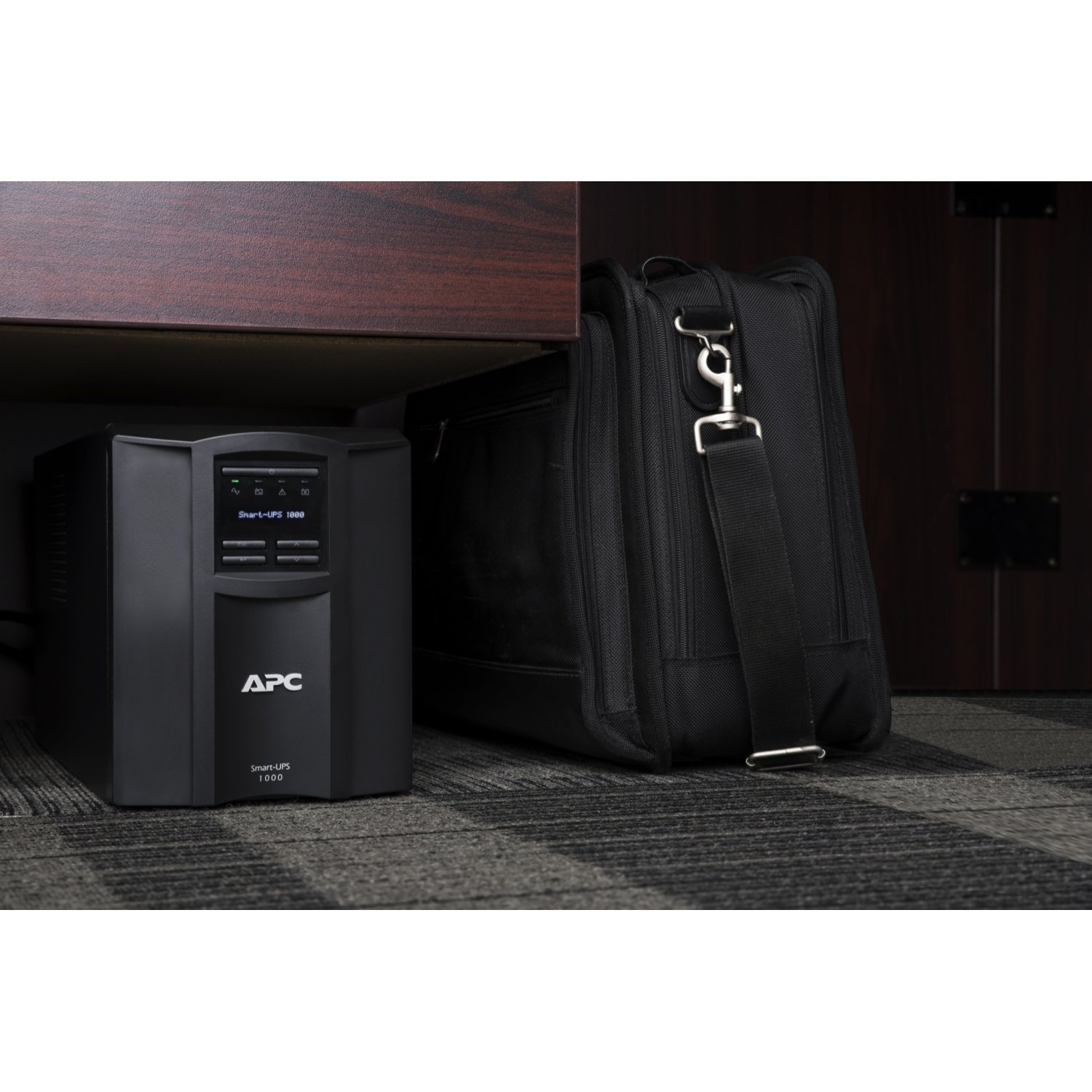

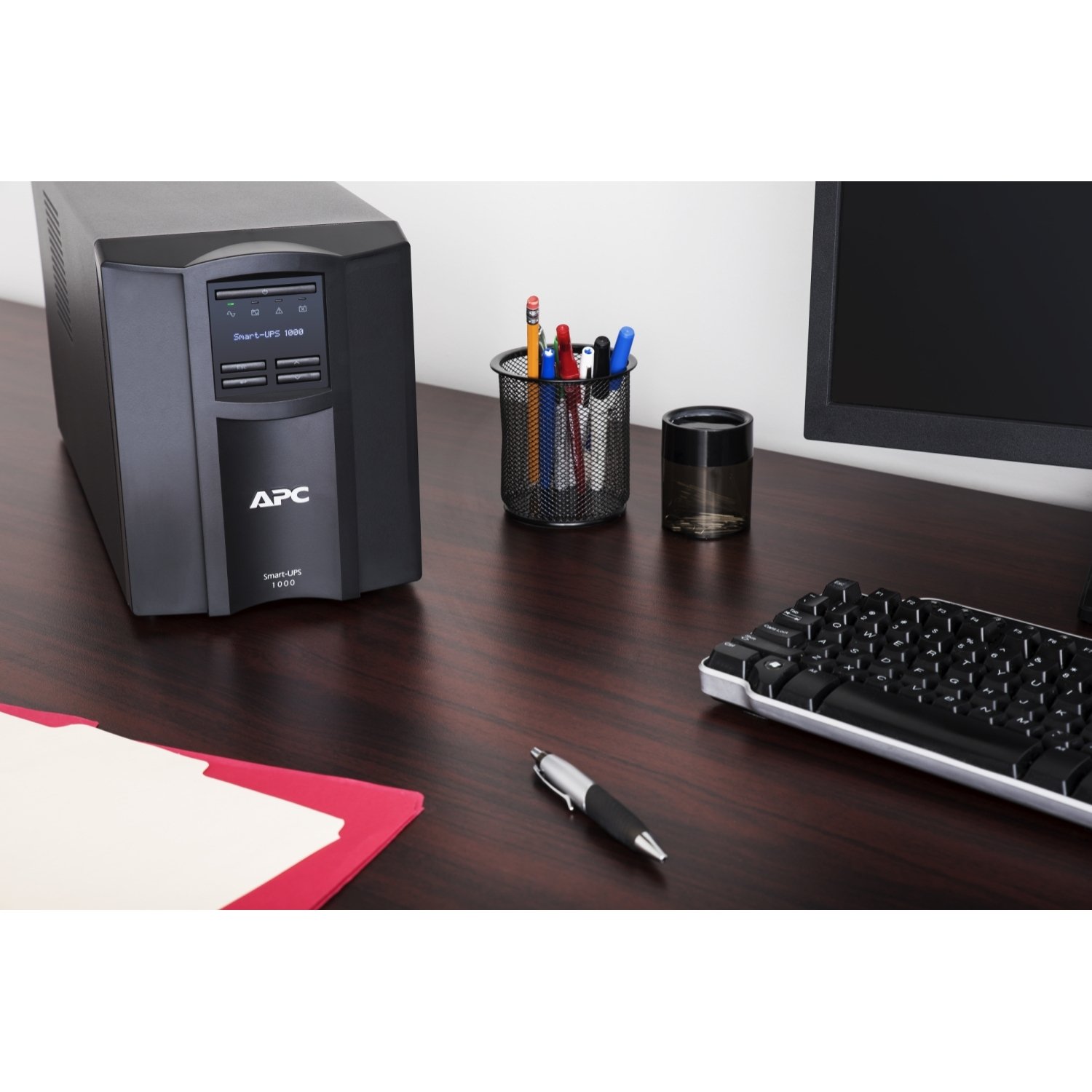

SMT1000IC | APC Smart-UPS SMT 1000VA
Call for Price
APC SMT1000IC
[dt_divider style="thin" /]APC Smart-UPS, Line Interactive, 1000VA, Tower, 230V, 8x IEC C13 outlets, SmartConnect Port+SmartSlot, AVR, LCD
Description
Characteristics
No Reviews
Description
APC SMT1000IC 1000VA/700W line interactive pure sine wave tower UPS. This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1000VA line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions.
[dt_divider style=”thin” /]
Overview
| Main | |
| Main input voltage | 230 V |
| Other input voltage | 220 V 240 V |
| Main output voltage | 230 V |
| Other output voltage | 220 V 240 V |
| Rated power in W | 700 W |
| Rated power in VA | 1000 VA |
| Input Connection type | IEC 320 C14 |
| Output Connection type | 8 IEC 320 C13 2 IEC Jumpers |
| Battery type | Lead-acid battery |
| Provided equipment | Cat 5 Ethernet cable Installation guide USB cable |
| General | |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Product web sub-family | Cloud-enabled monitoring |
| Redundant | No |
| Physical | |
| Color | Black |
| Height | 21.9 cm |
| Width | 17.1 cm |
| Depth | 43.9 cm |
| Net weight | 19.4 kg |
| Mounting location | Front |
| Mounting support | Floor |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | No |
| Input | |
| Input voltage limits | 151…302 V adjustable 160…286 V |
| Network frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Output | |
| Harmonic distortion | Less than 5 % |
| Maximum Configurable Power in VA | 1000 VC |
| Maximum configurable power in W | 700 W |
| Transfer time | 6 ms typical : 10 ms maximum |
| UPS type | Line interactive |
| Wave type | Sine wave |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Conformance | |
| product certifications | CE EAC RCM VDE |
| Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Environmental | |
| Acoustic level | 41 dBA |
| Heat dissipation | 100 Btu/h |
| Operating altitude | 0…10000 ft |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0.00…15240.00 m |
| Relative Humidity | 0…95 % |
| Storage Relative Humidity | 0…95 % |
| Batteries & Runtime | |
| Run Time | View Run Time Graph |
| Efficiency | View Efficiency Graph
|
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
| Extended runtime | 0 |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 3 h |
| number of battery replacement quantity | 1 |
| Battery life | 3…5 year(s) |
| Replacement battery | RBC6 |
| Battery power in VAH | 264 VAh runtime |
| Battery charger power | 88 W rated |
| Communications & Management | |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Control panel | Multifunction LCD status and control console |
| Emergency power off | Optional |
| Free slots | 1 |
| Surge Protection and Filtering | |
| Surge energy rate | 459 J |
| Noise suppression | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Package 1 Length | 32.8 cm |
| Number of Units in Package 1 | 1 |
| Number of Units in Package 3 | 12 |
| Package 1 width | 59.5 cm |
| Package 1 Height | 37.6 cm |
| Package 1 Weight | 22.77 kg |
| Contractual warranty | |
| Warranty | 3 years repair or replace (excluding battery) and 2 years for battery |
