Product code: E3SUPS30KHB1

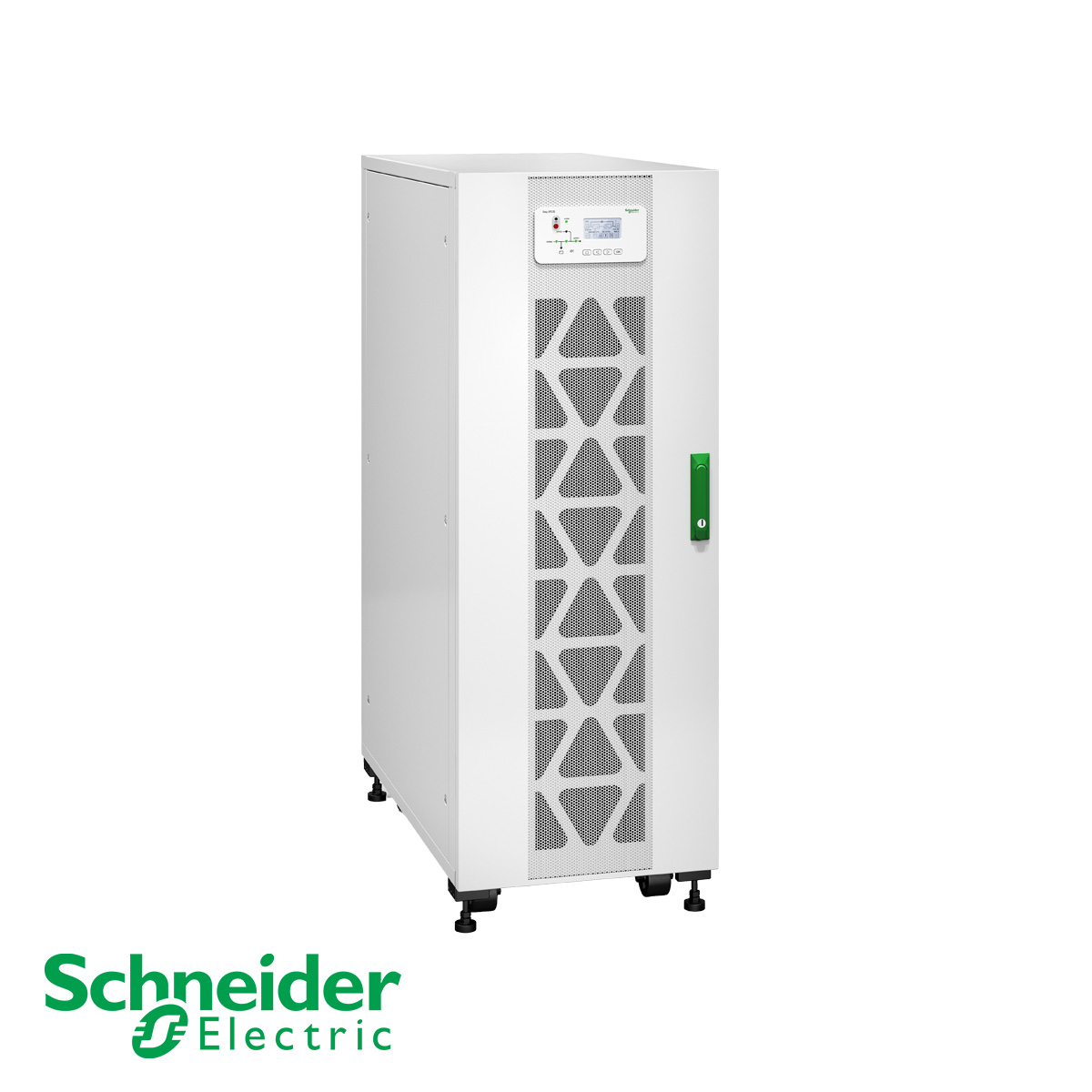

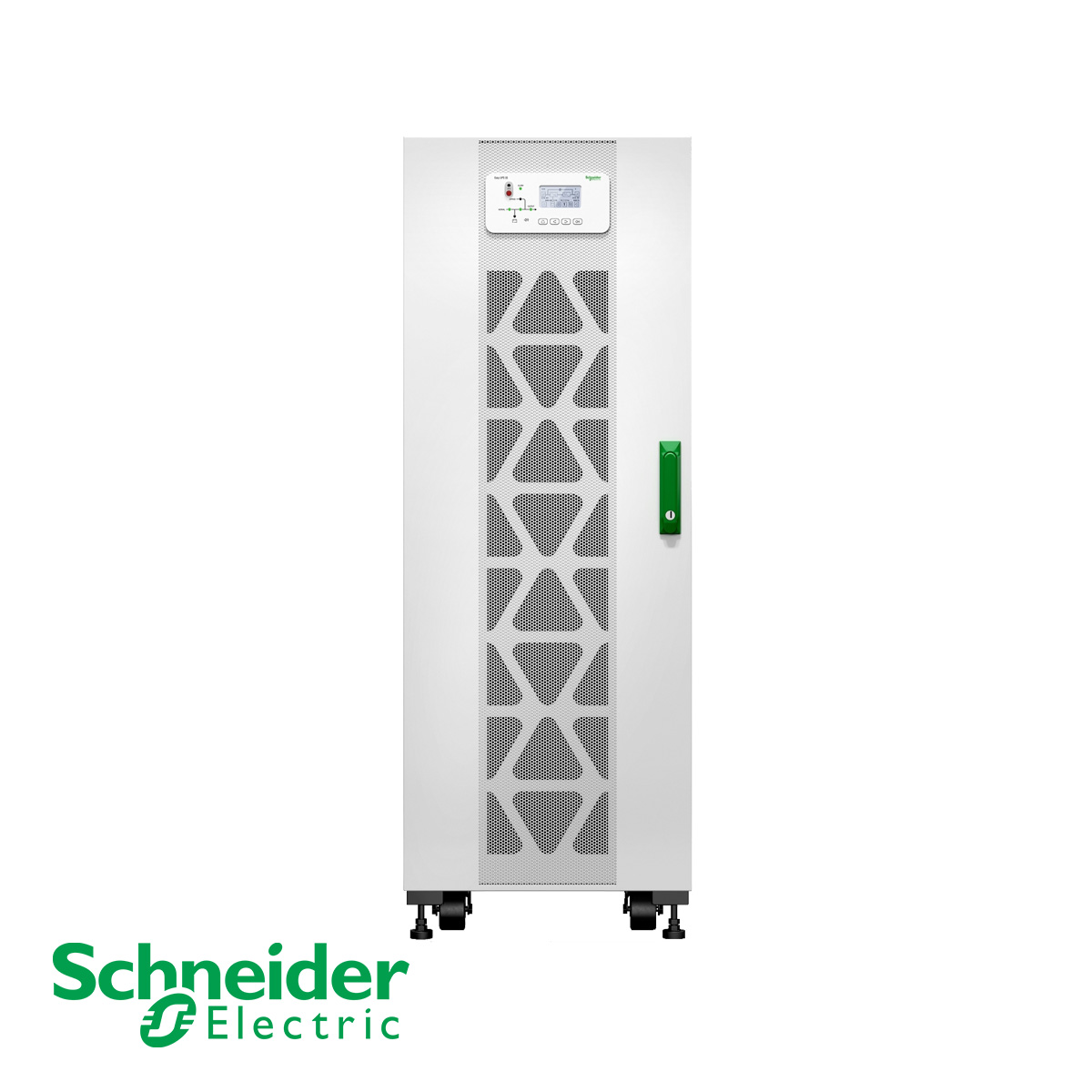

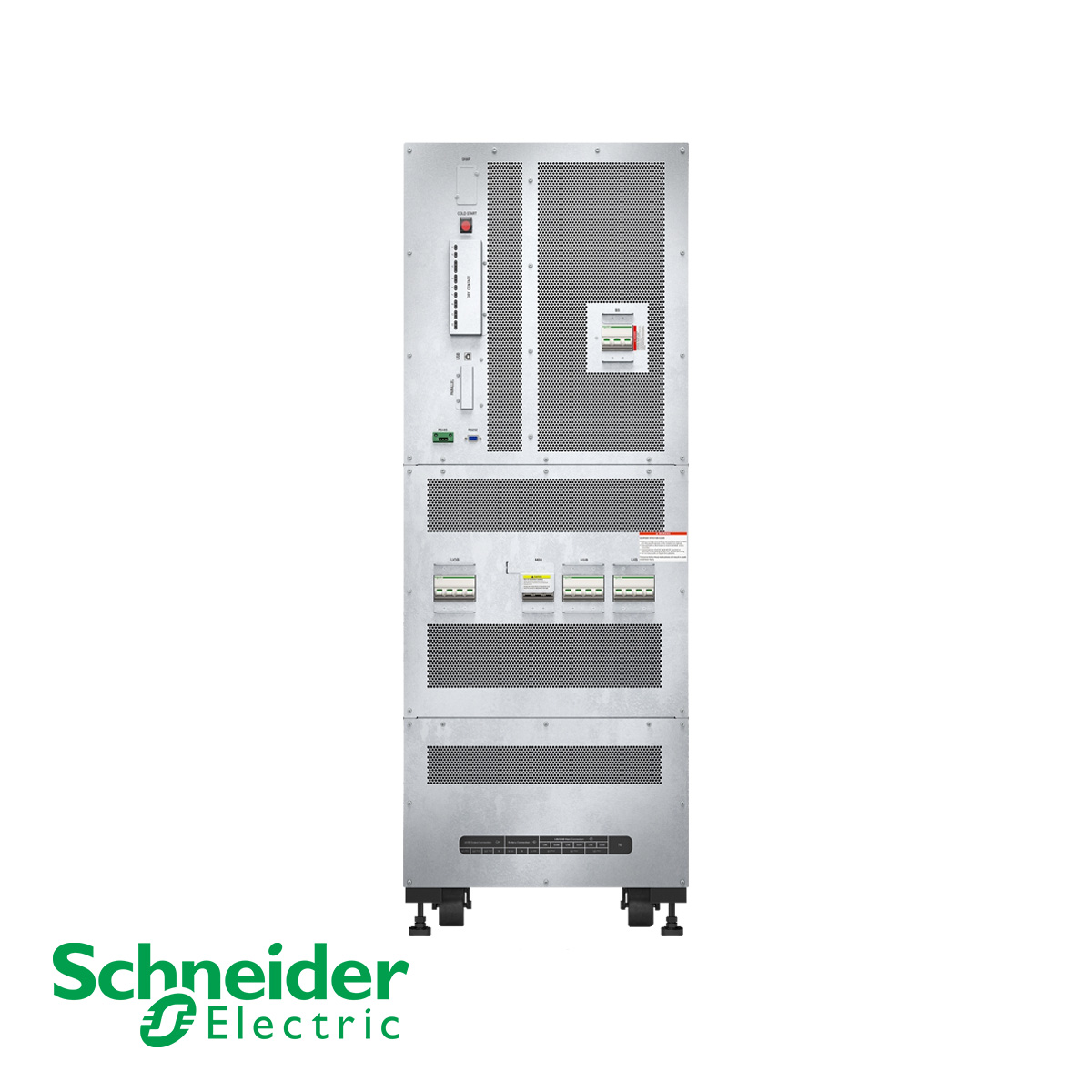

E3SUPS30KHB1 | SE Easy UPS 3S 30 kVA 400V 3:3 UPS
Call for Price
Schneider Electric E3SUPS30KHB1
[dt_divider style="thin" /]Easy UPS 3S 30kVA 400V 3:3 UPS, 2 internal 7Ah modular battery strings, expandable to 4
Description
Characteristics
No Reviews
Description
Schneider Electric E3SUPS30KHB1 30 kVA / 30 kW 400V 3-phase UPS. With advanced product features, competitive specifications, and robust electrical design, the Easy UPS 3S UPS makes business continuity easy for small and medium data centers and electrical rooms. Includes dust filter and conformance-coated boards for harsh environments, and 2 internal 7Ah modular battery strings, expandable to 4 strings for extended runtime.
[dt_divider style=”thin” /]
Overview
| Main | |
| Main input voltage | 400 V 3 phases |
| Other input voltage | 380 V 415 V |
| Main output voltage | 400 V 3 phases |
| Other output voltage | 380 V 415 V |
| Rated power in W | 30 kW |
| Rated power in VA | 30 kVA |
| Provided equipment | Dust filter Installation guide |
| Physical | |
| Color | White (RAL 9003) |
| Height | 140 cm |
| Width | 50 cm |
| Depth | 96.9 cm |
| Net weight | 584 kg |
| USB compatible | Yes |
| Input | |
| Maximum input current | 55 A |
| Input harmonic distortion | Less than 3 % for full load |
| load power factor | 0.9 leading to 0.9 lagging |
| Input Power Factor at Full Load | 0.99 |
| Input voltage limits | 304…477 V |
| Network frequency | 45…65 Hz |
| Output | |
| Maximum Configurable Power in VA | 30 kVA |
| Maximum configurable power in W | 30 kW |
| Output frequency | 50 Hz sync to mains 60 Hz sync to mains |
| Harmonic distortion | Less than 3 % |
| Output harmonic distortion | < 3% linear load |
| Output voltage tolerance | +/- 1.5 % |
| UPS type | Double conversion online |
| Additional information | UPS weight does not include battery weight. |
| Conformance | |
| Product certifications | CE EAC RCM |
| Environmental | |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0…3333 ft |
| Ambient air temperature for storage | -15…40 °C |
| Storage Relative Humidity | non-condensing  0…95 % |
| Storage altitude | 0.00…15240.00 m |
| Acoustic level | 63 dBA |
| Heat dissipation | 1410 Btu/h |
| IP degree of protection | IP20 |
| Batteries & Runtime | |
| Efficiency | View Efficiency Graph |
| Battery type | VRLA |
| Battery voltage | 240 V |
| Maximum short-circuit current | 10 kA |
| Number of batteries filled slots | 2 |
| Number of battery free slots | 2 |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Package 1 Length | 68.3 cm |
| Number of Units in Package 1 | 1 |
| Package 1 width | 111.4 cm |
| Package 1 Height | 164 cm |
| Package 1 Weight | 638 kg |
| Contractual warranty | |
| Warranty | 1 year on-site repair or replace with factory authorized Start-Up |
