Product code: SW280
SW280 (12V 280W) Yuasa High Rate VRLA Battery
Call for Price
SW280 (12V 280W) Yuasa High Rate VRLA Battery
Model: SW280Download Product Datasheet
Overview
Specicifications
No Reviews
Overview
| Overview | |
| Presentation | Yuasa SW280 Industrial VRLA Battery Safety Installation: Can be installed and operated in orientations up to 90° from the upright position. Handles: Batteries must not be suspended by their handles (where fitted). Vent valves: Each cell is fitted with a low pressure release valve to allow gasses to escape and then reseal. Gas release: VRLA batteries release hydrogen gas which can form explosive mixtures in the air. Do not place inside a sealed container. Recycling: YUASA’s VRLA batteries must be recycled at the end of life in accordance with local and national laws and regulations. |
| Lead time | Usually in Stock |
| Specifications | |
| Nominal voltage (V) | 12 |
| 10m rate Constant Power (Typ) to 9.6V at 20°C (W/Block) | 280 |
| 10m rate Constant Power (Typ) to 1.6V/cell at 20°C (W/Cell) | 46.7 |
| Dimensions | |
| Length (mm) | 151 (±1) |
| Width (mm) | 65 (±1) |
| Height over terminals (mm) | 97.5 (±2) |
| Mass (kg) | 2.6 |
| Terminal Type | |
| FASTON – Quickfit / release (JST where stated) | 6.35 |
| Operating Temperature Range | |
| Storage (in fully charged condition) | -20°C to +60°C |
| Charge | -15°C to +50°C |
| Discharge | -20°C to +60°C |
| Storage | |
| Capacity loss per month at 20°C (% approx.) | 3 |
| Case Material | |
| Standard | ABS (UL94:HB) |
| FR version available | UL94:V0 |
| Charge Voltage | |
| Float charge voltage at 20°C (V)/Block | 13.65 (±1%) |
| Float charge voltage at 20°C (V)/Cell | 2.275 (±1%) |
| Float Chg voltage tmp correction factor from std 20°C (mV) | -3 |
| Cyclic (or Boost) charge Voltage at 20°C (V)/Block | 14.5 (±3%) |
| Cyclic (or Boost) charge Voltage at 20°C (V)/Cell | 2.42 (±3%) |
| Cyclic Chg voltage tmp correction factor from std 20°C (mV) | -4 |
| Charge Current | |
| Float charge current limit (A) | 1.9 |
| Cyclic (or Boost) charge current limit (A) | 1.9 |
| Maximum Discharge Current | |
| 1 second (A) | 150 |
| 1 minute (A) | 50 |
| Impedance | |
| Measured at 1 kHz (mΩ) | 14 |
| Design Life & Approvals | |
| EUROBAT Classification: General Purpose | 6 to 9 years |
Specicifications
No Reviews
Similar items
SWL1800FR (12V 57.6Ah) Yuasa High Rate VRLA Battery
Call for PriceProduct successfully added to the Quote List
SWL1100 (12V 40.6Ah) Yuasa High Rate VRLA Battery
Call for PriceProduct successfully added to the Quote List
KUNG LONG Battery 12 Volt 18Ah WP18-12SHR
3,500 EGPProduct successfully added to the Quote List
KUNG LONG Battery 12 Volt 12Ah WP12-12
2,850 EGPProduct successfully added to the Quote List
SE Easy UPS On-Line SRVS Battery Pack SRVS36BP-9A
Call for PriceProduct successfully added to the Quote List
APC Smart-UPS RT Battery SRTG192XLBP2
Call for PriceProduct successfully added to the Quote List
APC Smart-UPS RT Battery SRT192BP
Call for PriceProduct successfully added to the Quote List
APC Smart-UPS RT Battery SRT72BP
Call for PriceProduct successfully added to the Quote List
Sale!

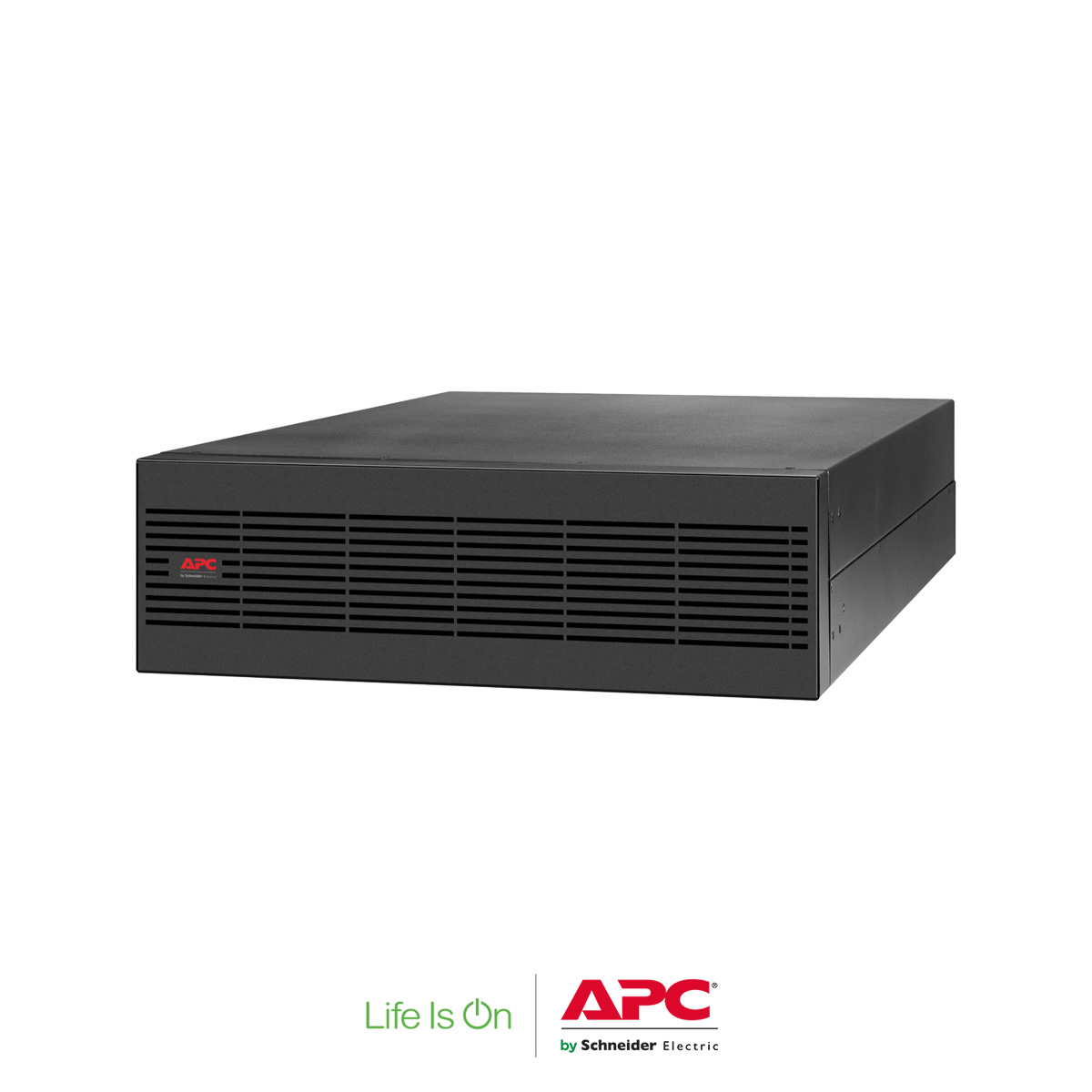

SRV120RLBP2-9A | APC Easy UPS On-Line SRV 120V RM Battery Pack
