Product code: SRTG10KXLI

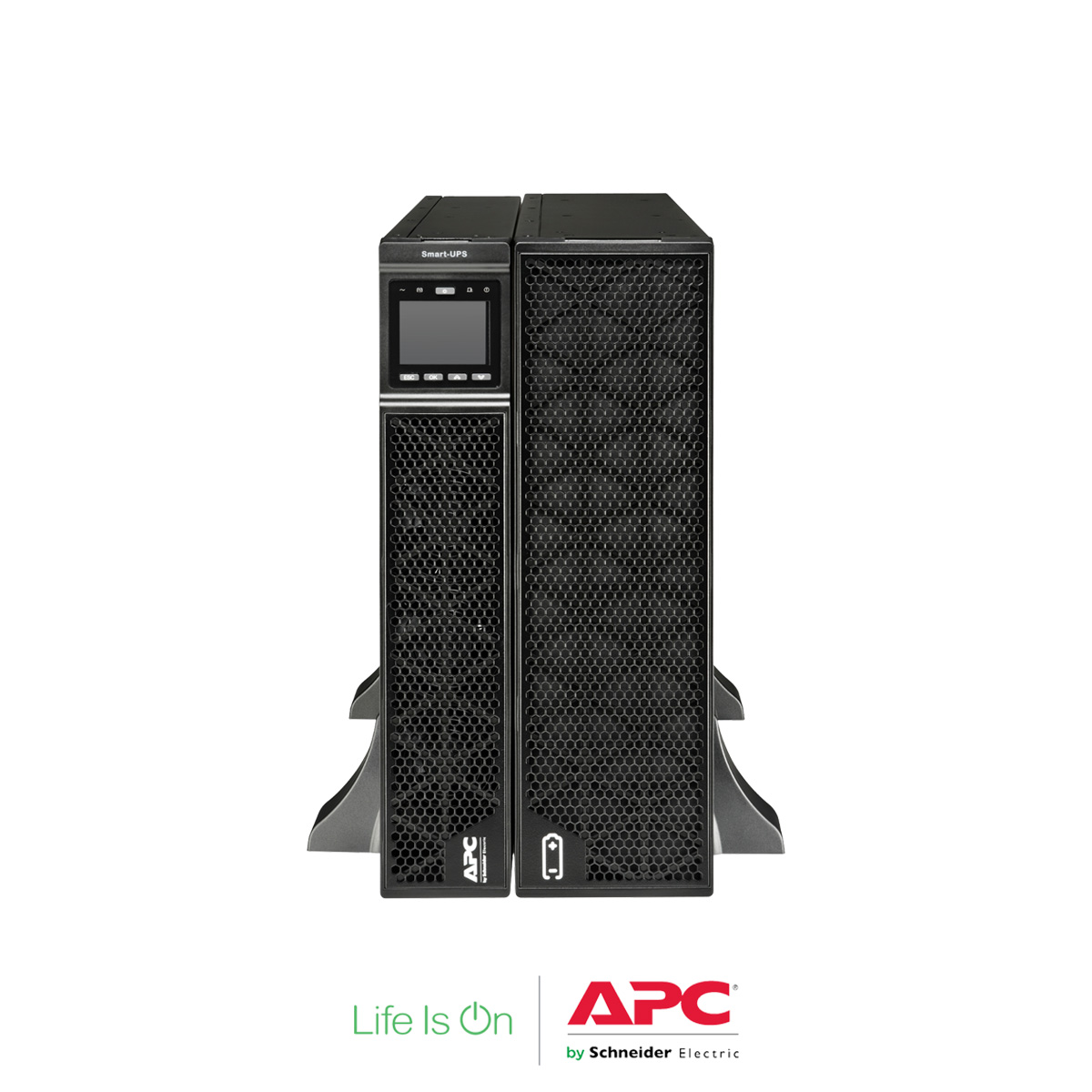

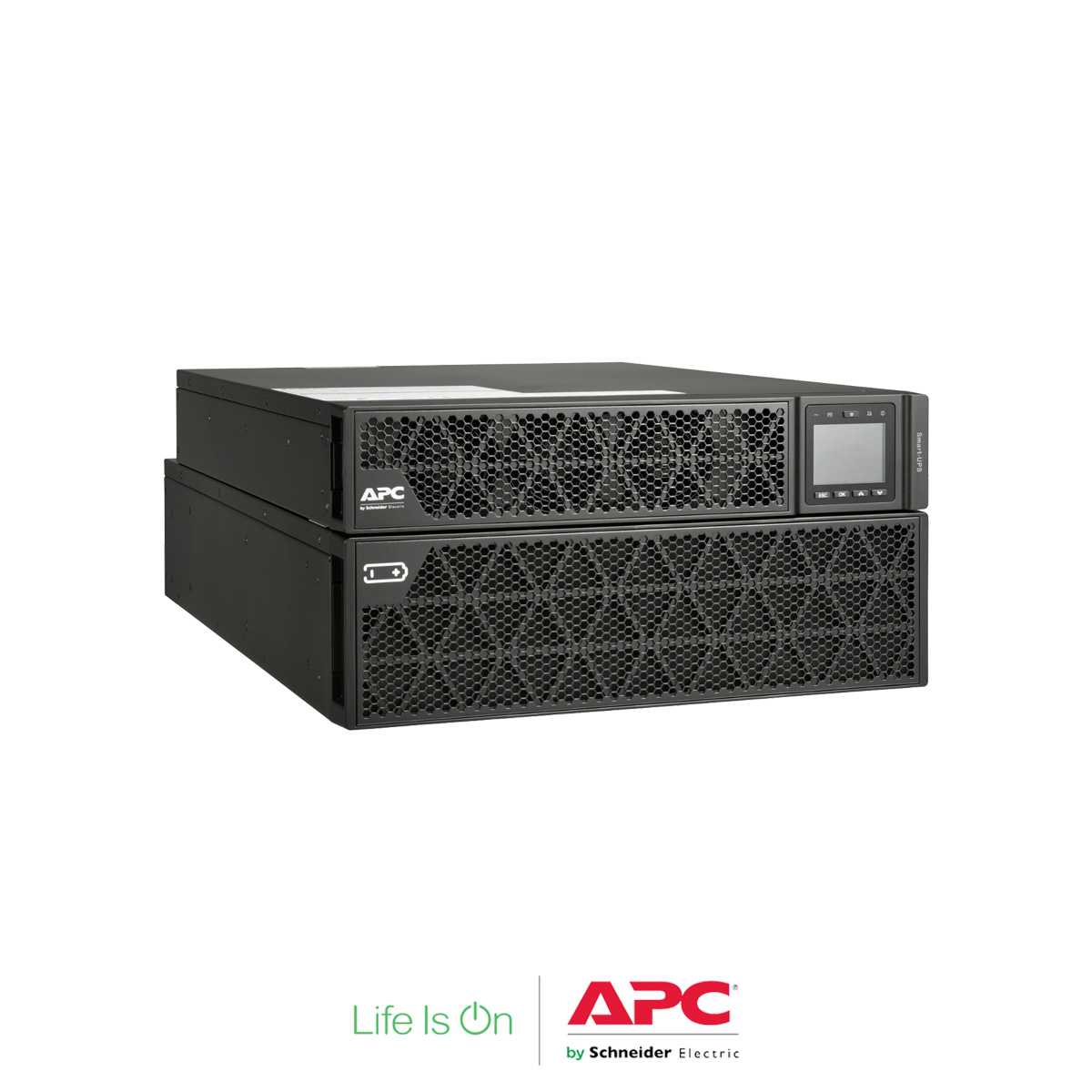

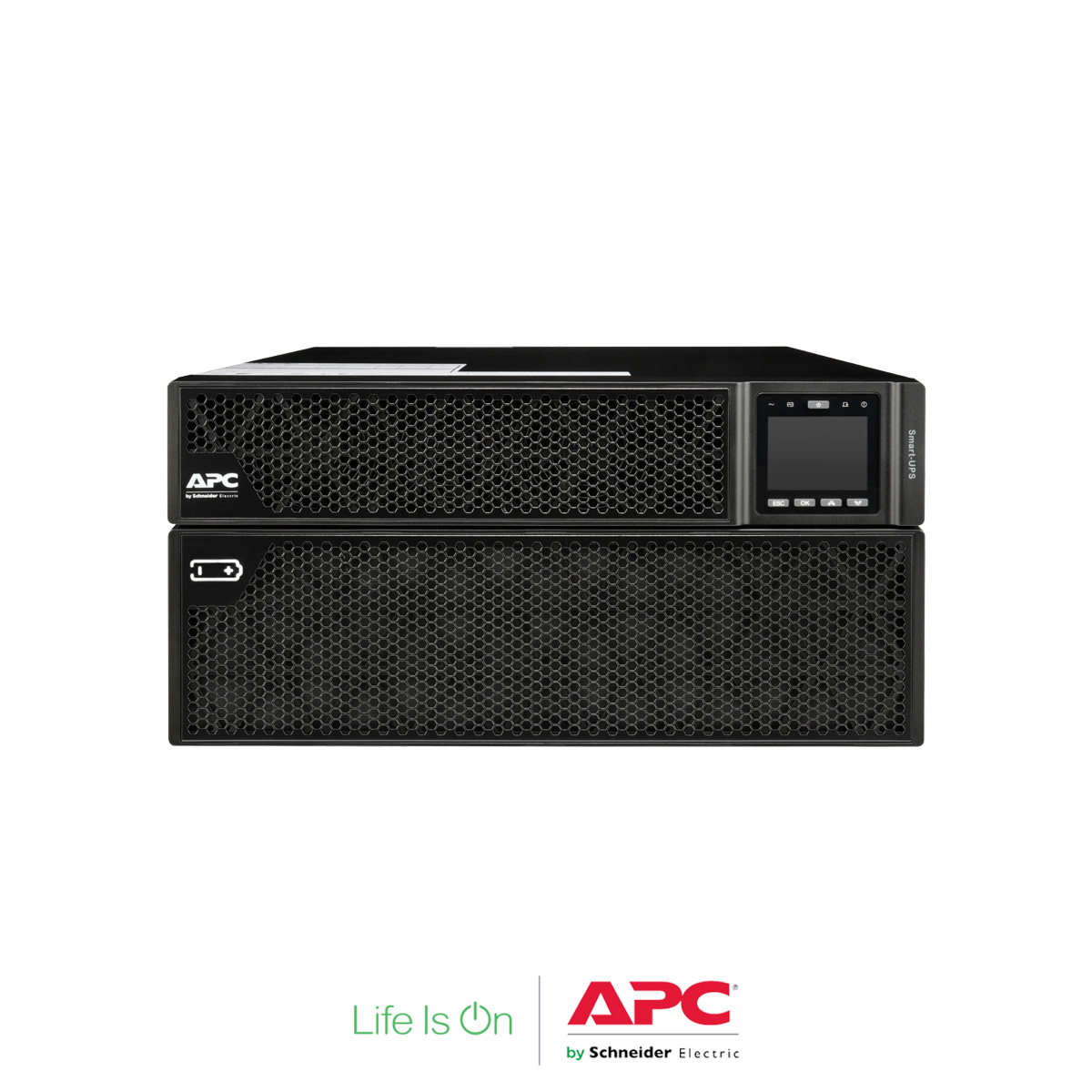

SRTG10KXLI | APC Smart UPS Online SRTG 10kVA/10kW
Original price was: 348,480 EGP.297,000 EGPCurrent price is: 297,000 EGP.
APC SRTG10KXLI
[dt_divider style="thin" /]APC Smart-UPS On-Line, 10kVA/10kW, Rack/Tower, 230V, 2x IEC C13+1x IEC C19+Hard wire 3-wire (H+N+E) outlets, Network Card, W/O rail kit
Product successfully added to the Quote List
Description
Characteristics
No Reviews
Description
APC SRTG10KXLI 10kVA/10kW double-conversion on-line pure sine wave rack/tower On-Line Rack/Tower Smart UPS. This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA on-line rack/tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions.
[dt_divider style=”thin” /]
Overview
| Main | |
| Main input voltage | 230 V |
| Other input voltage | 220 V 240 V |
| Main output voltage | 230 V |
| Other output voltage | 220 V 240 V |
| Rated power in W | 10000 W |
| Rated power in VA | 10000 VA |
| Output Connection type | 2 IEC 60320 C13 1 IEC 60320 C19 |
| Output Connector type | Hard wire 3-wire (H N + E) 1 |
| Battery type | Lead-acid battery |
| Provided equipment | Smart UPS signalling RS-232 cable User manual |
| General | |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Physical | |
| Height | 21.7 cm |
| Width | 44 cm |
| Depth | 68 cm |
| Net weight | 101.44 kg |
| Mounting preference | No preference |
| Mounting mode | Rack-mounted with kit |
| Two post mountable | 0 |
| USB compatible | No |
| Input | |
| Network frequency | 40…70 Hz auto-sensing |
| Number of input connectors | 1 hard wire 3-wire (1P + N + E) |
| Input voltage limits | 160…285 V |
| Maximum input current | 30 A |
| Switching current capacity | 40 A |
| Output | |
| Maximum configurable power in W | 10000 W |
| Harmonic distortion | Less than 2 % |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Crest factor | 3 : 1 |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| Bypass type | Internal bypass (automatic and manual) |
| Full load runtime | 00:03:30 10000 W |
| Half load runtime | 00:11:00 5000 W |
| Maximum configurable power in VA | 10000 VA |
| Conformance | |
| Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Environmental | |
| Ambient air temperature for operation | 0…40 °C |
| Relative Humidity | 0…95 % non-condensing |
| Operating altitude | 0…6600 ft |
| Ambient air temperature for storage | -15…45 °C |
| Storage Relative Humidity | Non-condensing 0…95 % |
| Storage altitude | 0.00…15240.00 m |
| Acoustic level | 55 dBA |
| Heat dissipation | 2217.98 Btu/h |
| IP degree of protection | IP20 |
| Batteries & Runtime | |
| Run Time | View Run Time Graph |
| Efficiency | View Efficiency Graph |
| Number of batteries filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 4 h |
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
| Battery voltage | +/- 96 V |
| Battery charger power | 431 W rated |
| Battery power in VAH | 1772 VAh runtime |
| Battery life | 3…5 year(s) |
| Battery option | SRTG192XLBP4 1 3564 VAh SRTG192XLBP4 2 5415 VAh SRTG192XLBP4 3 7378 VAh SRTG192XLBP4 4 9216 VAh |
| Extended runtime | 1 |
| Communications & Management | |
| Preinstalled device | Network management card 3 with environmental monitoring |
| Control panel | LED Status display with on line : on battery Multifunction LCD status and control console |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Emergency power off | Yes |
| Surge Protection and Filtering | |
| Surge energy rate | 600 J |
| Â | |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Package 1 Length | 59 cm |
| Number of Units in Package 1 | 1 |
| Package 1 width | 79 cm |
| Package 1 Height | 41.4 cm |
| Package 1 Weight | 103.46 kg |
| Contractual warranty | |
| Warranty | 2 years |
