Product code: SMV1000I-GR

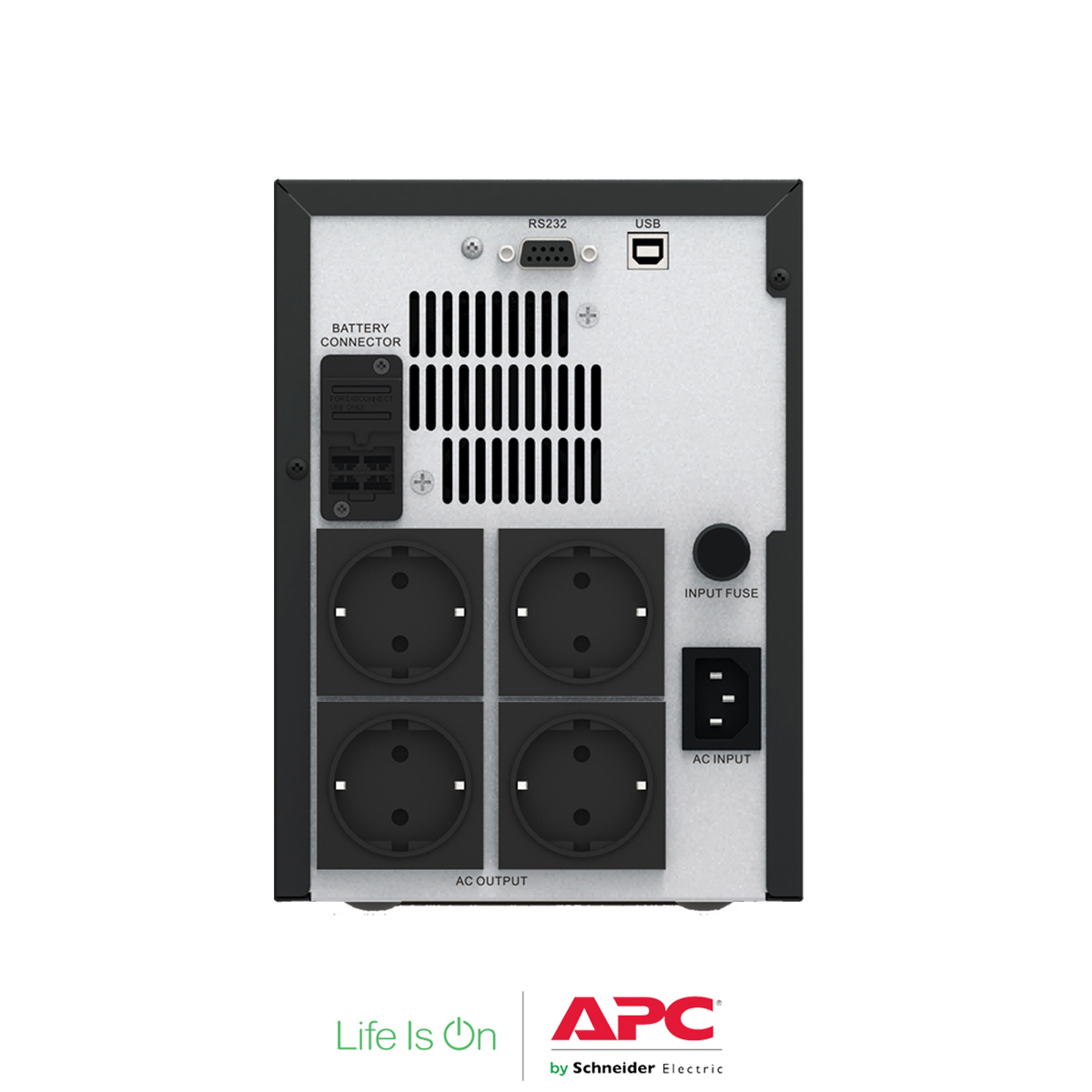

SMV1000I-GR | APC Easy UPS Line-interactive SMV 1000VA 230V
21,000 EGP
APC SMV1000AI-GR
[dt_divider style="thin" /]
APC Easy UPS 1 Ph Line Interactive, 1000VA, Tower, 230V, 4 Schuko CEE 7 outlets, AVR, LCD
Product successfully added to the Quote List
Description
Characteristics
No Reviews
Description
[vc_row][vc_column][vc_video link=”https://www.youtube.com/watch?v=Z-wcCQJKvng” css_animation=”fadeIn” css=”.vc_custom_1676793012901{margin-bottom: 30px !important;}”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
[dt_divider style=”thin” /]
APC SMV1000AI-GR 1000VA/700W line interactive pure sine wave tower Easy UPS. This APC Single phase Easy UPS is designed for essential power protection needs of small to medium businesses even in the most unstable power conditions. This 1000VA line interactive tower UPS provides pure sine wave power to handle a wide voltage range and inconsistent power conditions.
[dt_divider style=”thin” /]
Overview
| Main | |
| Input voltage | 230 V |
| Input voltage | 220 V 240 V |
| Output voltage | 230 V |
| Rated power in W | 700 W |
| Rated power in VA | 1000 VA |
| Plug standard | IEC 60320 C14 |
| nb of power socket outlets | 4 Schuko CEE 7 |
| Number of cables | 1 |
| battery type | Lead-acid battery |
| Provided equipment | Documentation CD User manual USB cable |
| General | |
| Number of power module free slots | 0 |
| Number of power module filled slots | 0 |
| Redundant | No |
| UPS size | WS |
| Physical | |
| Color | Black |
| Height | 22 cm |
| Width | 16 cm |
| Depth | 41 cm |
| Net weight | 13.6 kg |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | NO |
| Input | |
| Network frequency | 45…65 Hz +/- 1 Hz auto-sensing |
| Input voltage limits | 165…290 V |
| Output | |
| Maximum configurable power in W | 700 W |
| Output frequency | 50/60 Hz +/- 1 Hz unsynchronised |
| Crest factor | 3 : 1 |
| Harmonic distortion | 3 % |
| Transfer time | 4 ms typical |
| UPS type | Line interactive |
| Wave type | Sine wave |
| Graph display | 1 |
| Maximum configurable power in VA | 1000 VA |
| Transfer time | 2-6 ms typical : 12 ms maximum |
| Conformance | |
| Product certifications | CE |
| Standards | EN/IEC 62040-1 EN/IEC 62040-2 |
| Environmental | |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0…3000 m |
| Ambient air temperature for storage | -10…40 °C |
| Storage Relative Humidity | non-condensing 0…95 % |
| Storage altitude | 0…15000 m |
| Acoustic level | 45 dBA |
| IP degree of protection | IP20 |
| Batteries & Runtime | |
| Runtime | View Runtime Graph |
| Efficiency | View Efficiency Graph |
| Number of batteries filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 4 h |
| Battery voltage | 24 V |
| Battery charger power | 37 W rated |
| Battery life | 3…5 year(s) |
| Extended runtime | 0 |
| Communications & Management | |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Surge Protection and Filtering | |
| Surge energy rate | 190 J |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 16.6 kg |
| Package 1 Height | 33.9 cm |
| Package 1 width | 27.2 cm |
| Package 1 Length | 50.8 cm |
| Contractual warranty | |
| Warranty | 2 years repair or replace |
[/vc_column_text][/vc_column][/vc_row]
Characteristics
| موديل | SMV1000I |
|---|
