Product code: E3MUPS160KHS

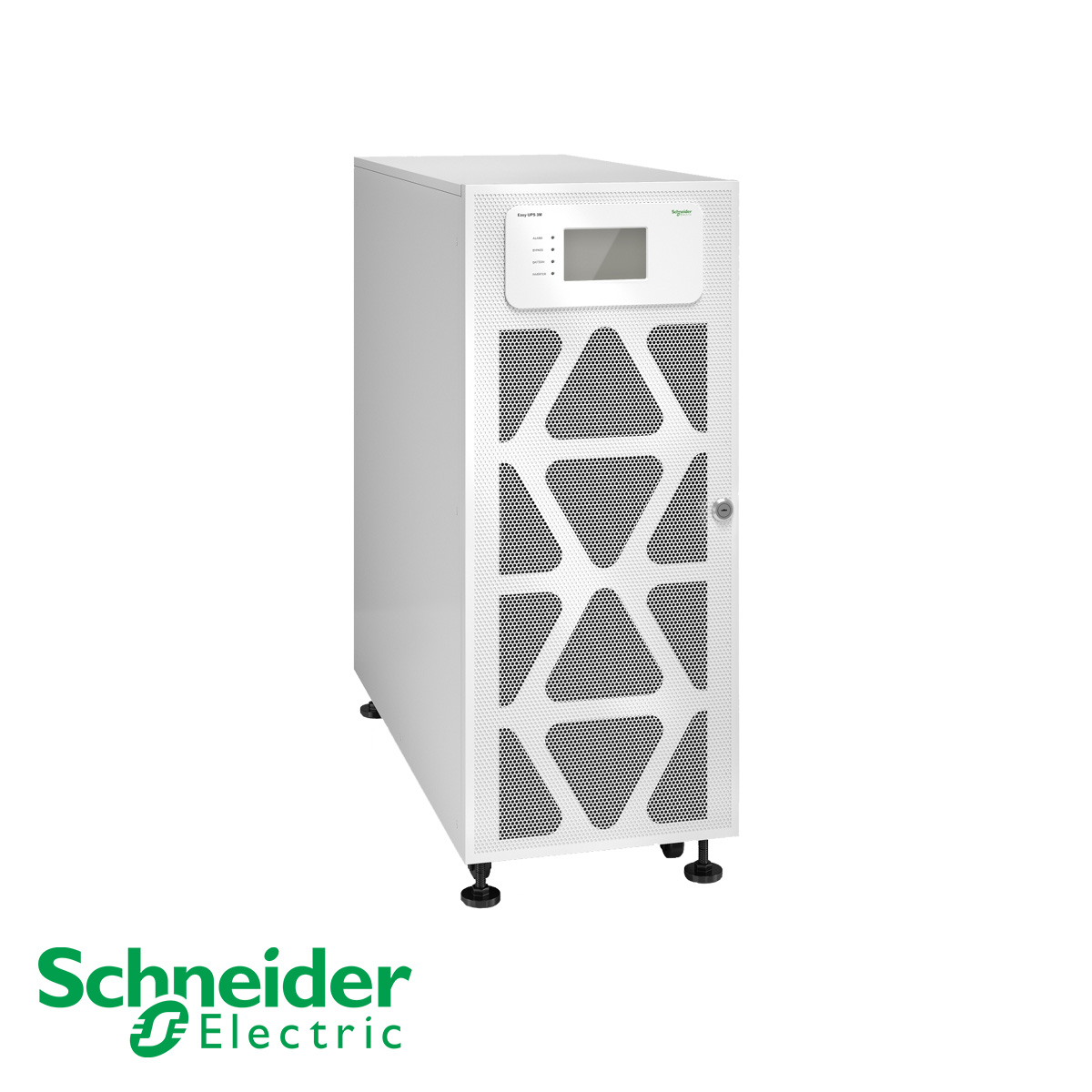

E3MUPS160KHS | SE Easy UPS 3M 160kVA 400V 3:3 UPS
Call for Price
Schneider Electric E3MUPS160KHS
[dt_divider style="thin" /]Easy UPS 3M 160kVA 400V 3:3 UPS for external batteries, Start-up 5x8
Description
Characteristics
No Reviews
Description
Schneider Electric E3MUPS160KHS 160 kVA / 160 kW 400V 3-phase UPS Easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 160 kVA 3 phase UPS with advanced product features, robust electrical specifications and compact design making your business continuity easy. Ideal for small and medium data centers and other business critical applications, this UPS is EcoStruxure-ready to give you peace of mind with cloud-based remote monitoring and management. It is supplied without batteries, so you can easily customize your battery solution. Includes 5×8 start-up service.
[dt_divider style=”thin” /]
Overview
| Main | |
| Main input voltage | 400 V 3 phases |
| Other input voltage | 380 V 415 V |
| Main output voltage | 400 V 3 phases |
| Other output voltage | 380 V 415 V |
| Rated power in W | 160 kW |
| Rated power in VA | 160 kVA |
| Provided equipment | Dust filter Installation guide Start-up service |
| Physical | |
| Color | White (RAL 9003) |
| Height | 130 cm |
| Width | 50 cm |
| Depth | 85 cm |
| Net weight | 227 kg |
| USB compatible | Yes |
| Input | |
| Maximum input current | 262 A |
| Max short time withstand current | 10 kA |
| Input harmonic distortion | Less than 3 % for full load |
| load power factor | 0.5 leading to 0.5 lagging without derating |
| Input Power Factor at Full Load | 0.99 |
| Input voltage limits | 342…477 V |
| Network frequency | 40…70 Hz |
| Output | |
| Maximum Configurable Power in VA | 160 kVA |
| Maximum configurable power in W | 160 kW |
| Output frequency | 50 Hz sync to mains 60 Hz sync to mains |
| Harmonic distortion | Less than 3 % |
| Output harmonic distortion | < 3% linear load and < 5% non-linear load |
| Output overload operation | 10 minutes at 125% and 60 seconds at 150% |
| Output voltage tolerance | +/- 1 % |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| Environmental | |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0…4921 ft |
| Ambient air temperature for storage | -25…55 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0.00…15240.00 m |
| Acoustic level | 72 dBA |
| Heat dissipation | 27297 Btu/h |
| IP degree of protection | IP20 |
| Batteries & Runtime | |
| Efficiency | View Efficiency Graph |
| Battery type | External battery system |
| Number of batteries filled slots | 0 |
| Number of battery free slots | 0 |
| Communications & Management | |
| Control panel | Touch screen LCD user interface |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 150 cm |
| Package 1 Width | 97.5 cm |
| Package 1 Length | 62.5 cm |
| Package 1 Weight | 257 kg |
| Contractual warranty | |
| Warranty | 1 year on-site repair or replace with factory authorized Start-Up |
