Product code: E3MUPS60KHB2S

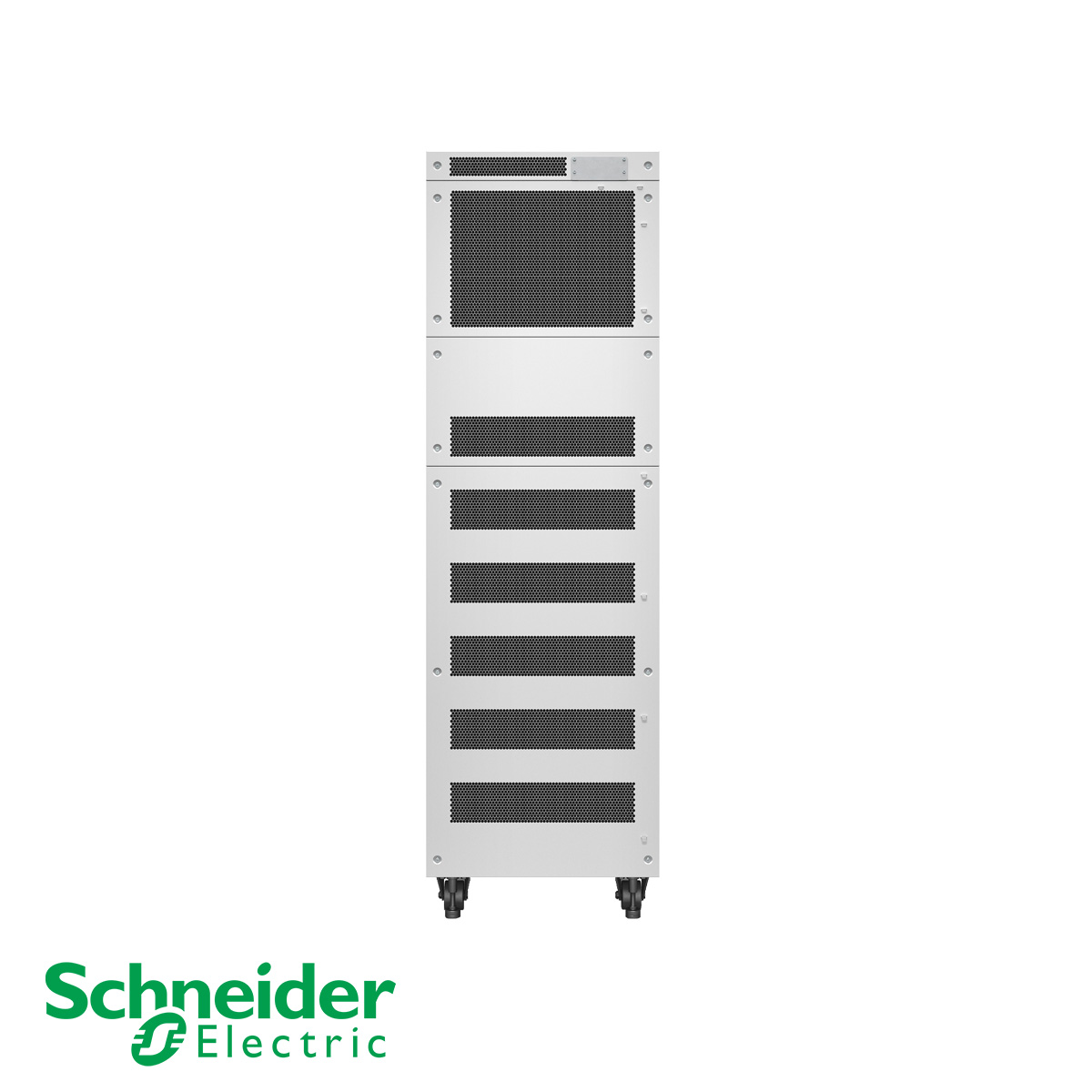

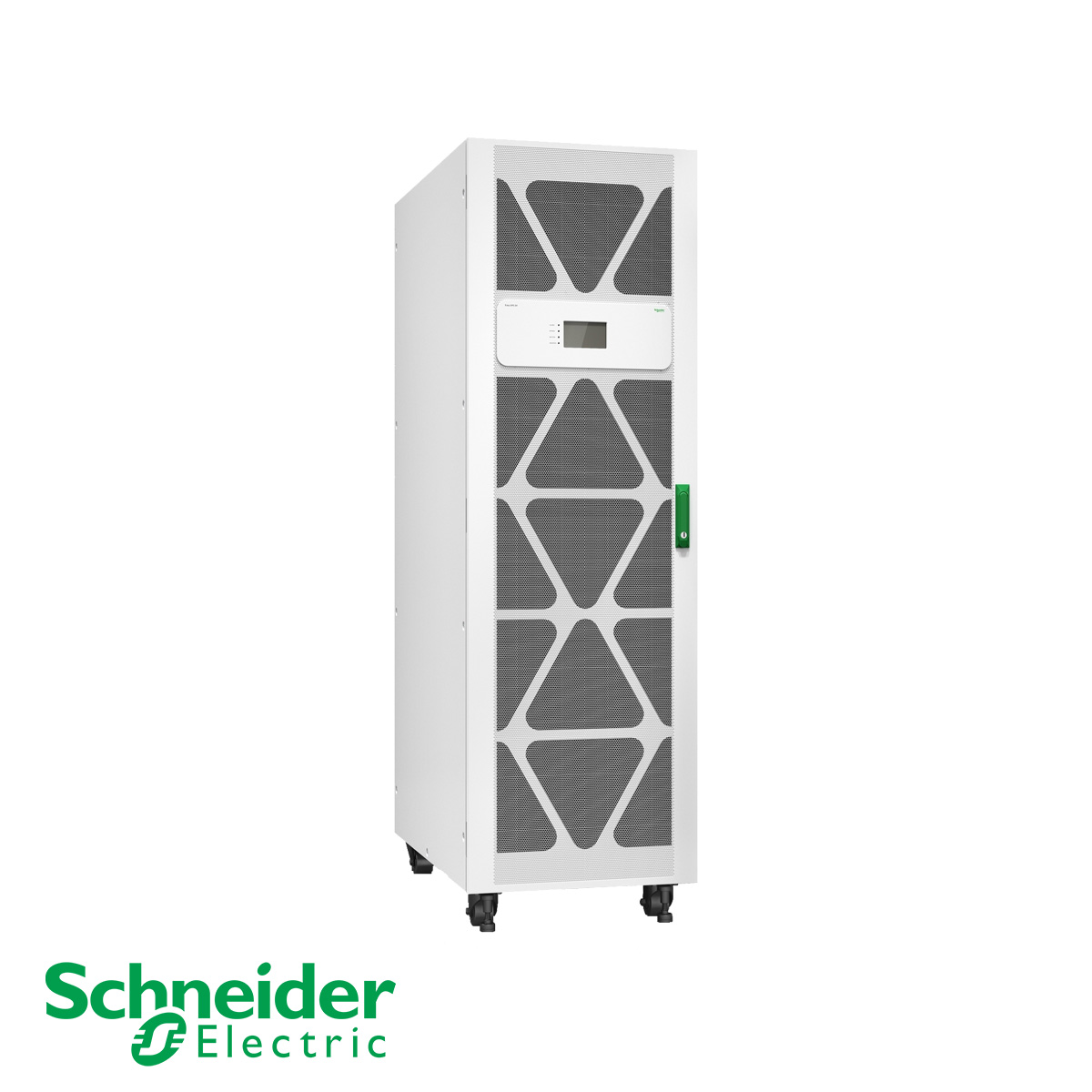

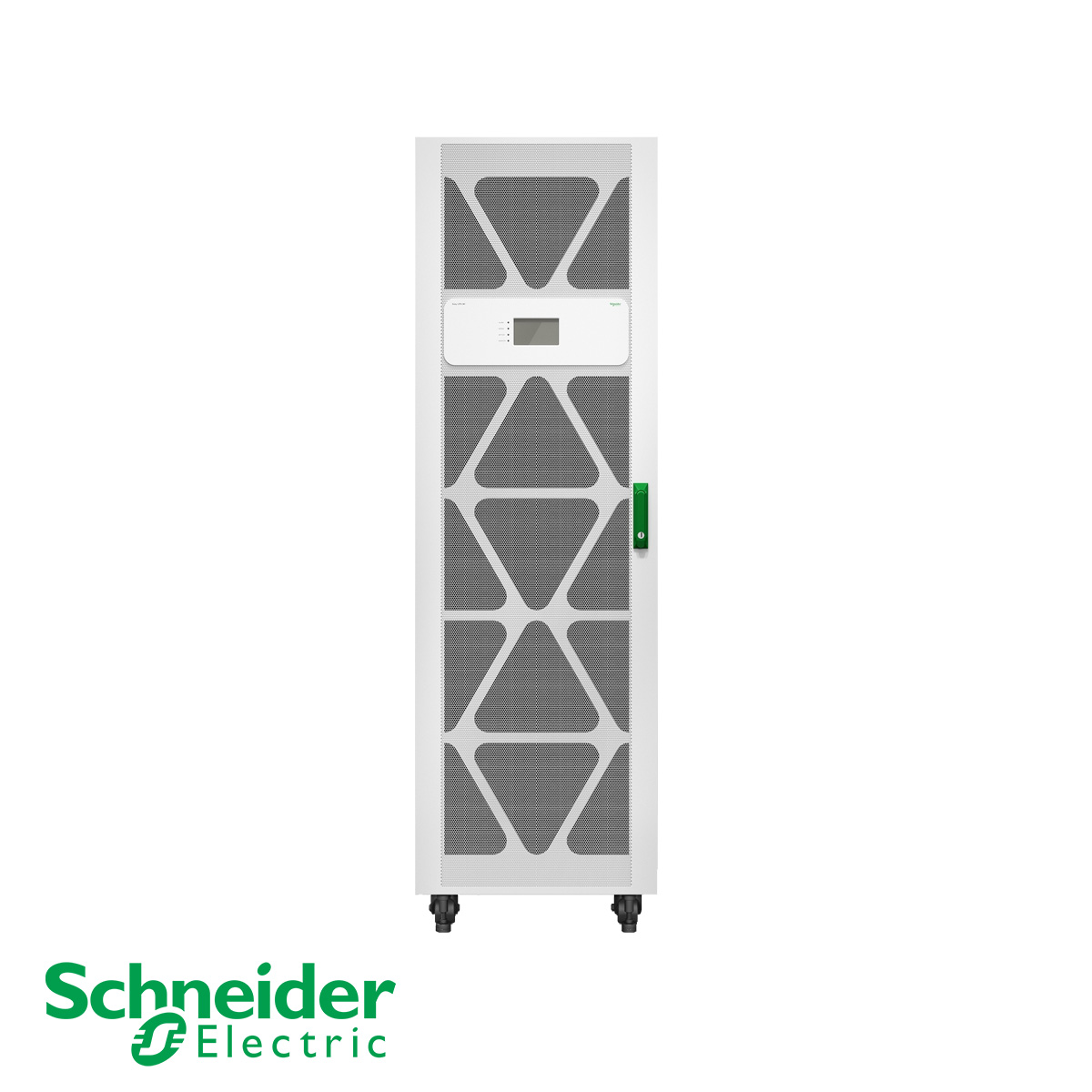

E3MUPS60KHB2S | SE Easy UPS 3M 60kVA 400V 3:3 UPS
Call for Price
Schneider Electric E3MUPS60KHB2S
[dt_divider style="thin" /]Easy UPS 3M 60kVA 400V 3:3 UPS, 4 internal 9Ah modular battery strings expandable to 6, Start-up 5x8
Description
Characteristics
No Reviews
Description
Schneider Electric E3MUPS60KHB2S 60 kVA / 60 kW 400V 3-phase UPS Easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 60 kVA, 400V 3-phase UPS. With advanced product features, robust electrical specifications and compact design, the Easy UPS 3M UPS makes business continuity easy for small and medium data centers and other business critical applications. Includes 5×8 start-up service and 4 internal 9Ah modular battery strings, expandable to 6 for extended runtime.
[dt_divider style=”thin” /]
Overview
| Main | |
| Main input voltage | 400 V 3 phases |
| Other input voltage | 380 V 415 V |
| Main output voltage | 400 V 3 phases |
| Other output voltage | 380 V 415 V |
| Rated power in W | 60 kW |
| Rated power in VA | 60 kVA |
| Provided equipment | Dust filter Installation guide Start-up service |
| Physical | |
| Color | White (RAL 9003) |
| Height | 197 cm |
| Width | 60 cm |
| Depth | 100 cm |
| Net weight | 743 kg |
| USB compatible | Yes |
| Input | |
| Maximum input current | 104 A |
| Max short time withstand current | 10 kA |
| Input harmonic distortion | Less than 3 % for full load |
| load power factor | 0.5 leading to 0.5 lagging without derating |
| Input Power Factor at Full Load | 0.99 |
| Input voltage limits | 342…477 V |
| Number of input connectors | 1 hard wire 5-wire (3P + N + E) |
| Network frequency | 40…70 Hz |
| Output | |
| Maximum Configurable Power in VA | 60 kVA |
| Maximum configurable power in W | 60 kW |
| Output frequency | 50 Hz sync to mains 60 Hz sync to mains |
| Harmonic distortion | Less than 3 % |
| Output harmonic distortion | < 3% linear load and < 5% non-linear load |
| Output overload operation | 10 minutes at 125% and 60 seconds at 150% |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| bypass type | Built-in static bypass |
| Conformance | |
| Product certifications | CE EAC RCM |
| Â Environmental | |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0…1500 ft |
| Ambient air temperature for storage | -15…40 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0.00…4572.00 m |
| Acoustic level | 65 dBA |
| Heat dissipation | 10523 Btu/h |
| IP degree of protection | IP20 |
| Batteries & Runtime | |
| Battery type | VRLA |
| Battery voltage | 240 V |
| Number of batteries filled slots | 0 |
| Number of battery free slots | 0 |
| Max current discharge | 166 A |
| Communications & Management | ||
| Control panel | Touch screen LCD user interface | |
| Â Packing Units | ||
| Unit Type of Package 1 | PCE | |
| Number of Units in Package 1 | 1 | |
| Package 1 Height | 210.2 cm | |
| Package 1 Width | 112.5 cm | |
| Package 1 Length | 75 cm | |
| Package 1 Weight | 360 kg | |
| Contractual warranty | |
| Warranty | 1 year on-site repair or replace with factory authorized Start-Up |
Characteristics
No Reviews
Similar items
E3MUPS60KHS | SE Easy UPS 3M 60kVA 400V 3:3 UPS
Call for PriceProduct successfully added to the Quote List
SRVS10KIL | SE Easy UPS Online SRVS 10000VA 230V
150,000 EGPProduct successfully added to the Quote List
SRVS10KI | SE Easy UPS Online SRVS 10000VA 230V
Call for PriceProduct successfully added to the Quote List
SRVS2KI | SE Easy UPS Online SRVS 2000VA 230V
Call for PriceProduct successfully added to the Quote List

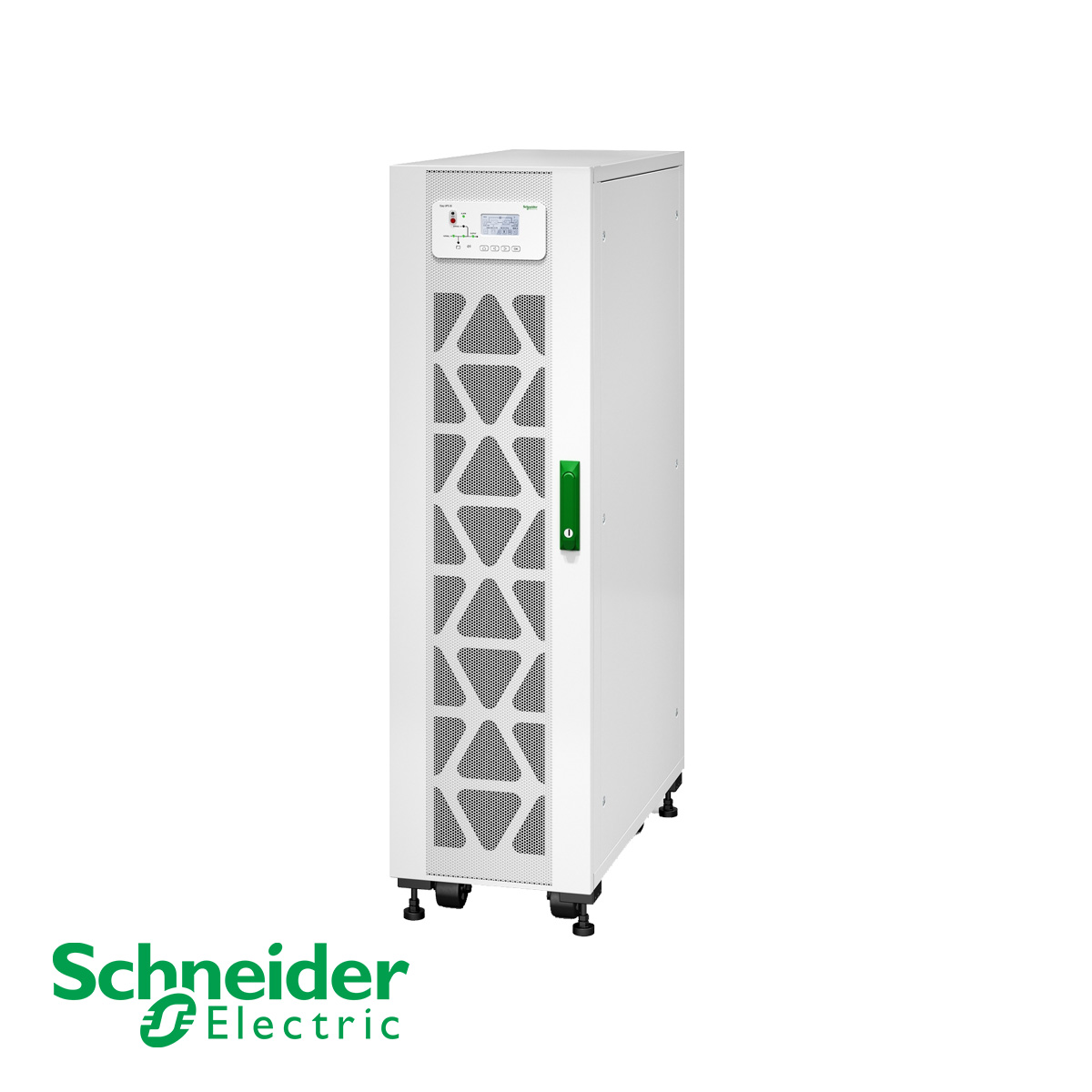

E3SUPS15KHB1 | SE Easy UPS 3S 15 kVA 400V 3:3 UPS
